Jarrett Boat Trailer Winch

Ratio: 10:1/5:1/1:1
3 Speed

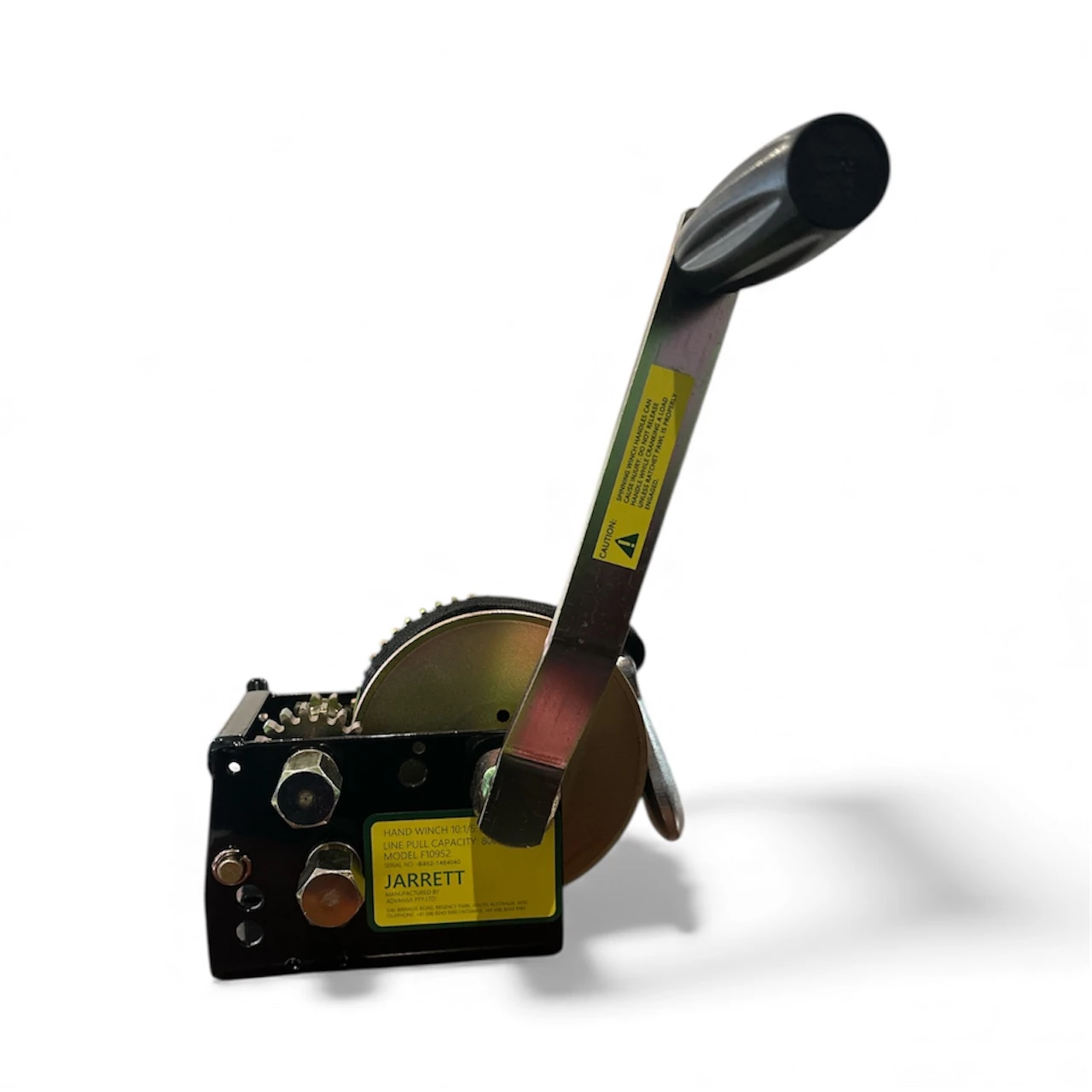

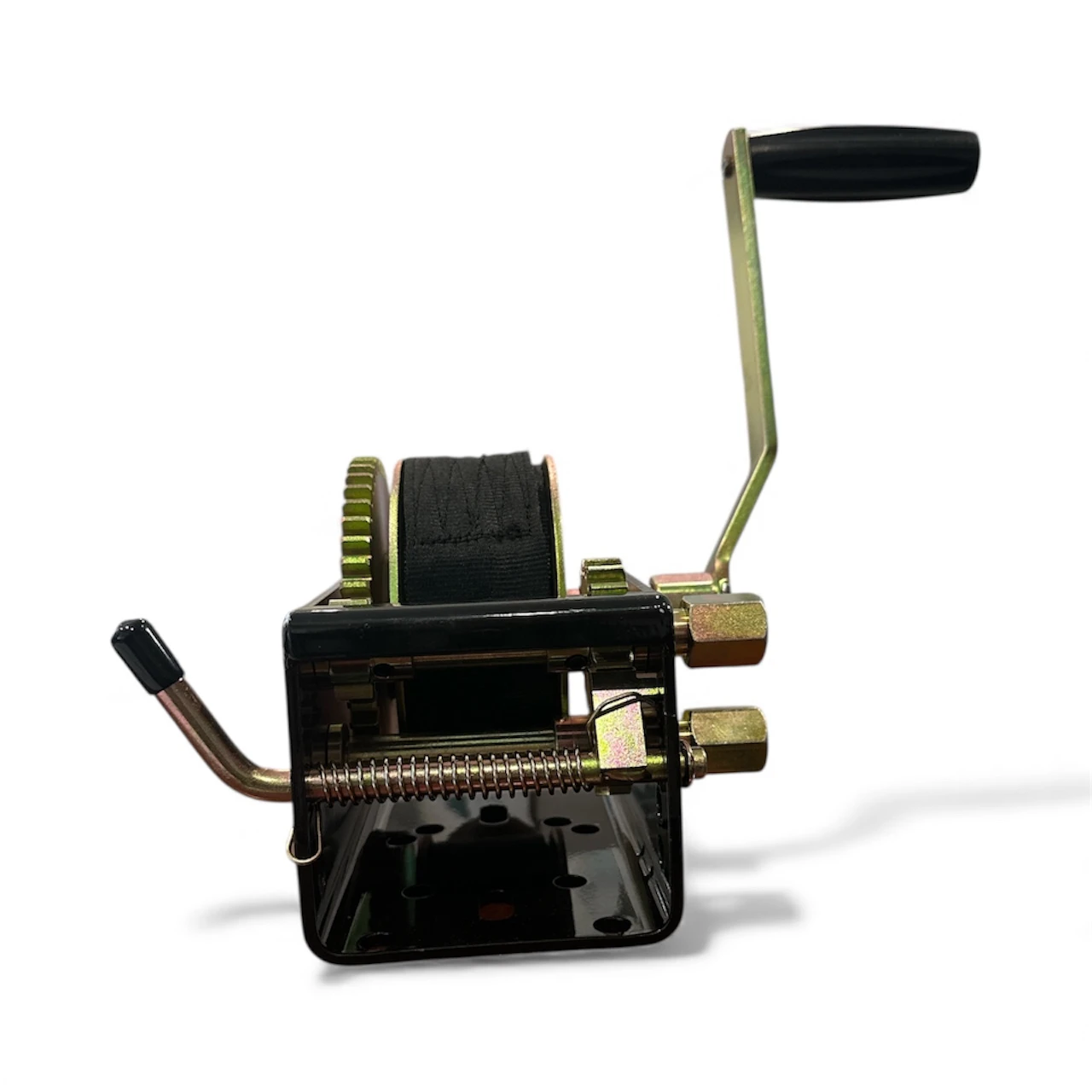

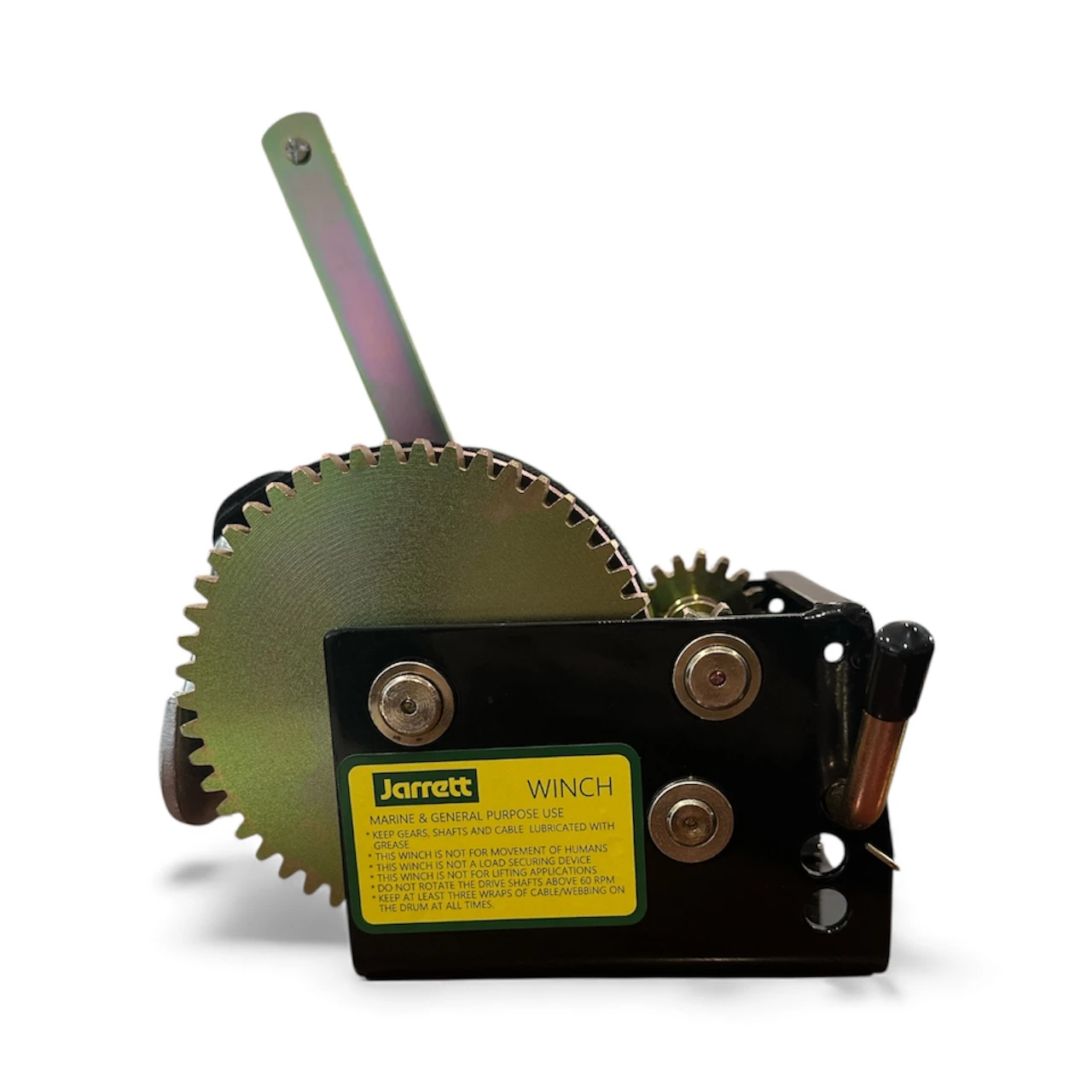

Jarrett 3 Speed Boat Trailer Winch 10:1 / 5:1 / 1:1 - 7.5m Webbing & Snap Hook
Winch rated at 800kg capacity

Note: This winch is not to be used for lifting

This winch is recommended for any boat size over 6 metres. 3 in 1 ratio winch, 1:1 for fast retrieval of slack cable, 5:1 ratio which should retrieve the boat approx. two thirds up the trailer, when handle effort becomes uncomfortable, then use 10:1 ratio to complete the retrieval of the boat.


Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers


Features

✅ Heavy duty 4mm winch body

✅ Steel bushes

✅ Machined gears

✅ Spare parts available

✅ Electroplated zinc cobalt

✅ Powder coated finish

✅ Detachable handle for change of ratio option

Specifications

Webbing: F10952 (no cover)

Gear Ratio is 10:1/5:1 / 1:1

Rated Capacity (using Webbing) / 800kg

Mass (Winch only): 5kg

Type of Ratchet: Lever Action

Drum Diameter: 50mm

Flange Diameter: 127mm

Drum Width: 52mm

Maximum Webbing: capacity 9m

Max. Effort on handle at Rated Load: 18kg

Breaking Strain – Webbing: 2070kg

Webbing: 7.5m

Fastening Device: Snap Hook

Owners Manual & Technical Information

https://docs.google.com/viewer?url=http://advansa.com.au/wp-content/uploads/4-Jarrett-2-speed-Boat-Trailer-Winch-Owners-Manual1.pdf

(JF10952)

12 Months

Specifications

Webbing: F10952 (no cover)

Gear Ratio is 10:1/5:1 / 1:1

Rated Capacity (using Webbing) / 800kg

Mass (Winch only): 5kg

Type of Ratchet: Lever Action

Drum Diameter: 50mm

Flange Diameter: 127mm

Drum Width: 52mm

Maximum Webbing: capacity 9m

Max. Effort on handle at Rated Load: 18kg

Breaking Strain – Webbing: 2070kg

Webbing: 7.5m

Fastening Device: Snap Hook

SKU JF10952
Model # F10952
Brand Jarrett
Shipping Weight 5.4000kg
Shipping Width 0.270m
Shipping Height 0.170m
Shipping Length 0.280m
Shipping Cubic 0.012852000m3
