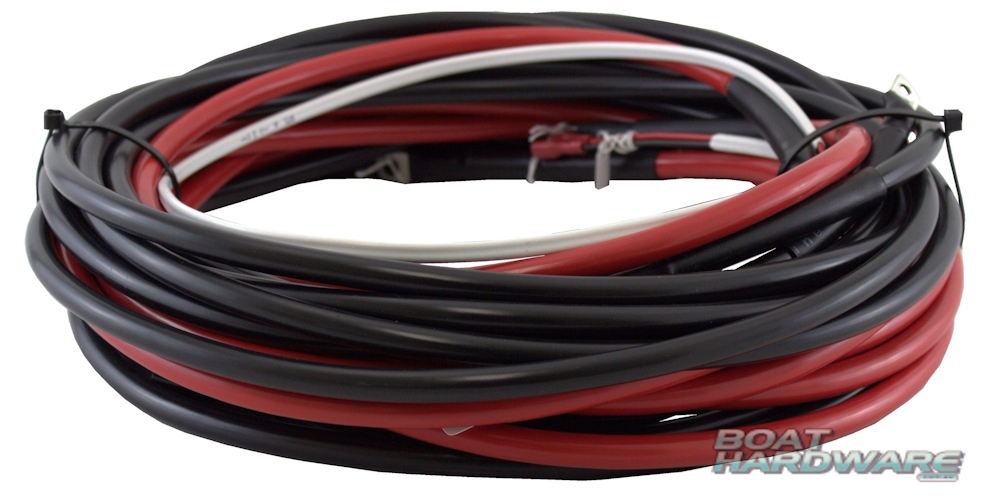

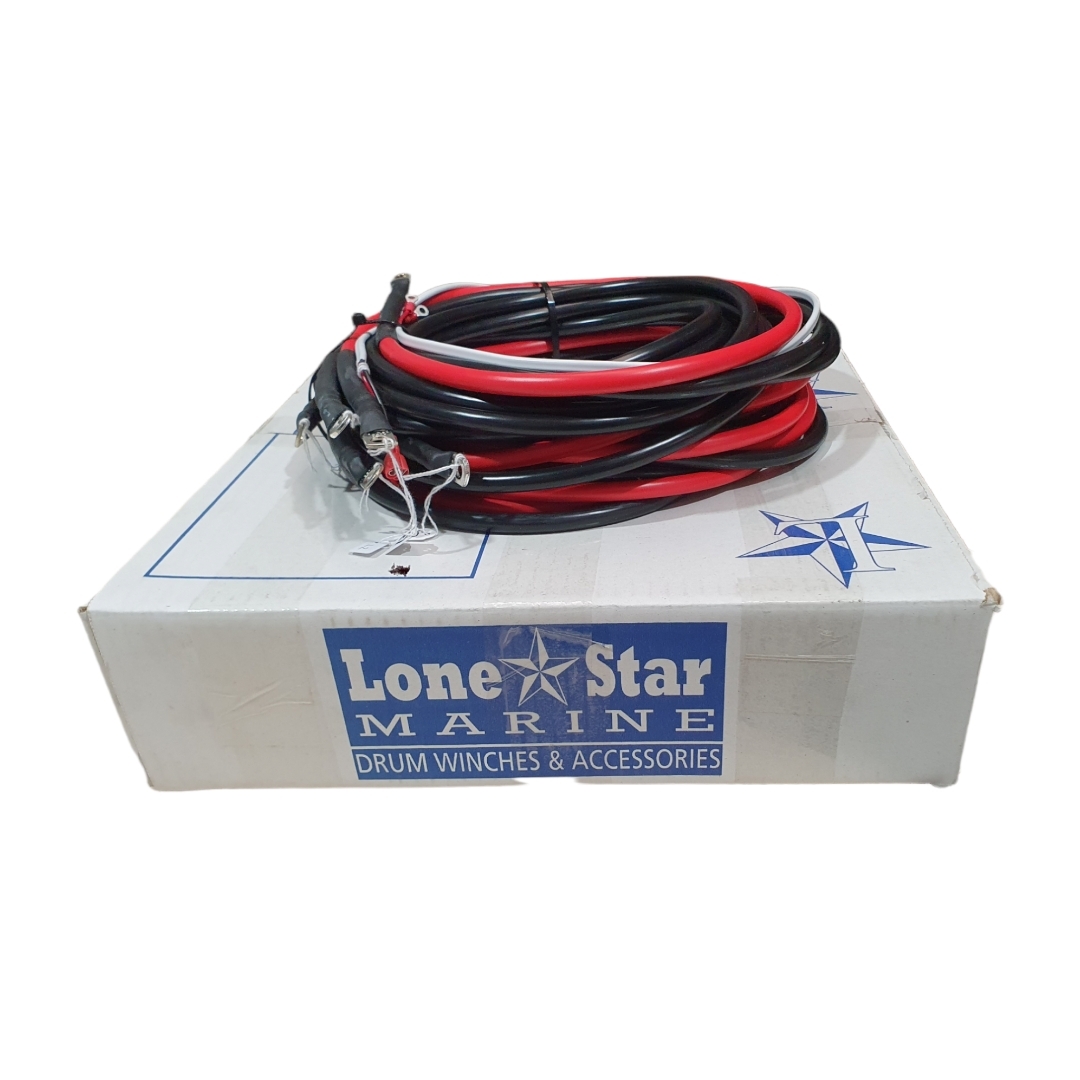

Lone Star Anchor Winch Wiring Loom

  • Suits most half cab and runabout boats up to 6.5m
  • Made from Tinned Marine Grade Australian Made Oxygen Free Cable
  • H/D Tinned Copper Lungs

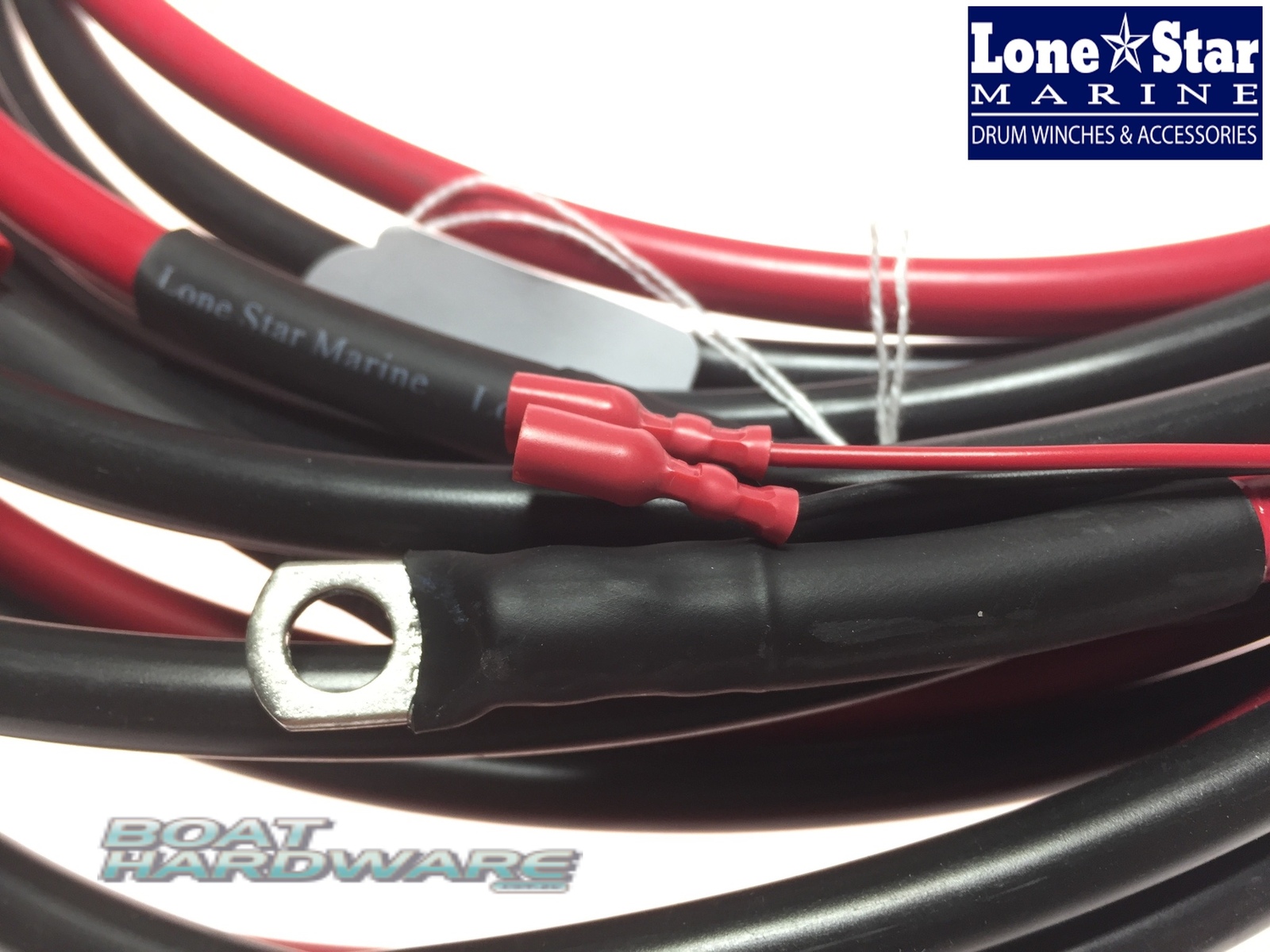

  • Dual Wall Epoxy Filled Heatshrink
  • Premium Tycab Cable
  • Simple "Plug and Play" Installation

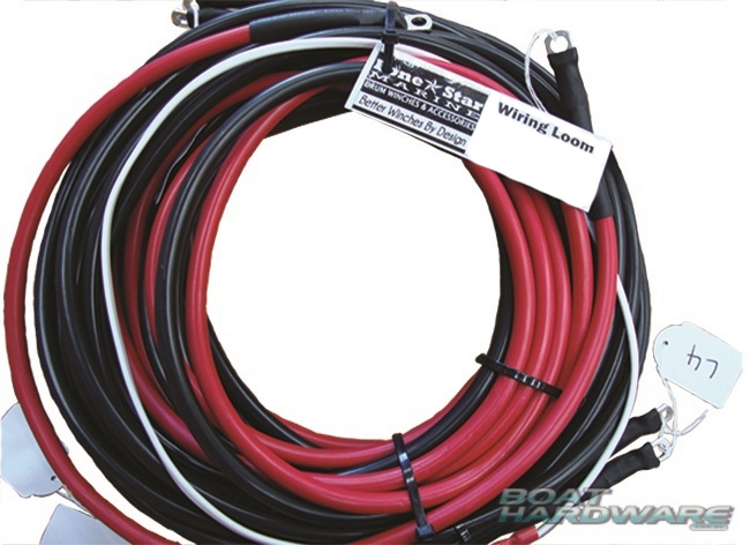

  • Fully Labelled
  • Rated for Winches up to 2500W


Model: 1000s

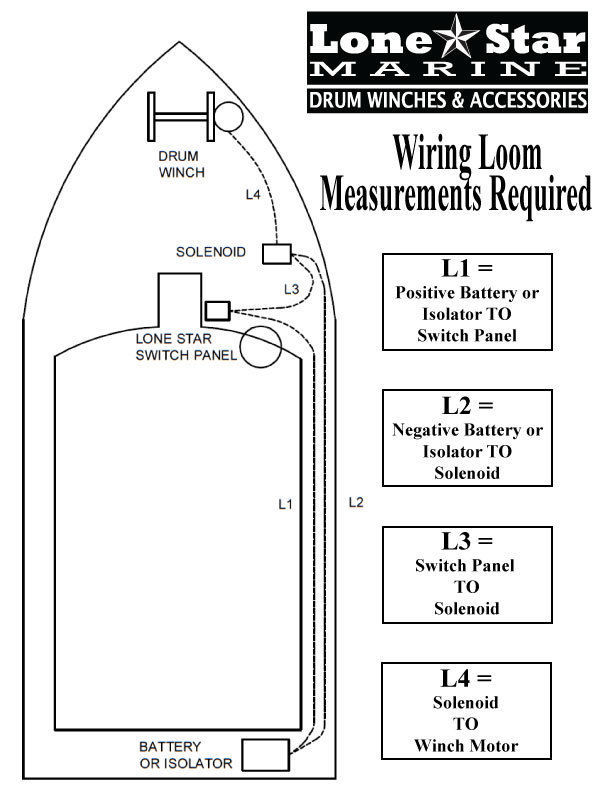

L1-5.8m, L2-5.8m, L3-1m, L4-3.2m

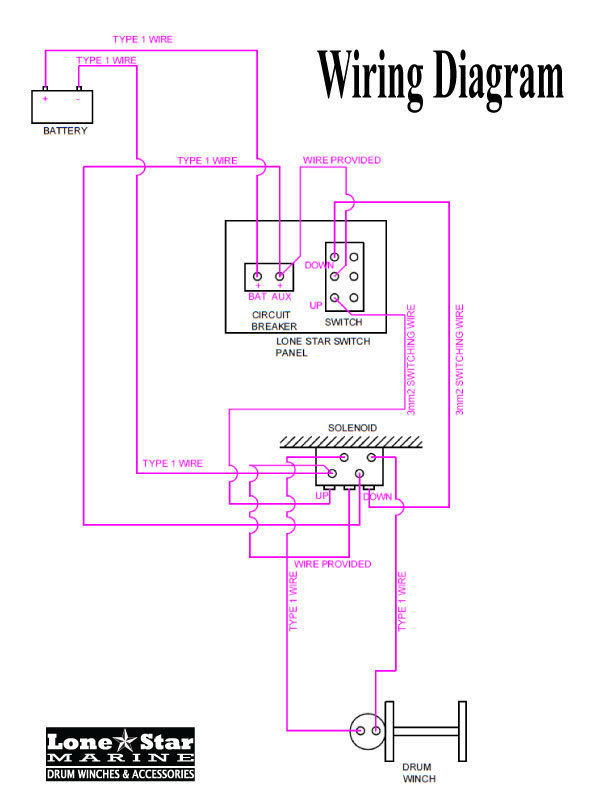

L1. Battery to Switch Panel

Switch Panel mounting area of 100 x 100mm. This should be located to the left or above the steering position.

L2. Battery to Solenoid

Solenoid can be mounted in a dry place anywhere between the Switch Panel and winch motor, but must be installed upright. Size is appr. 110x60x110. There will be four cables attached to the top.Under the dash or near winch motor is ideal.

L3. Switch Panel to Solenoid

L4. Solenoid to Winch Motor


SKU 1000s
Model # 1000s
Brand Lone Star
Shipping Weight 6.4000kg
Shipping Width 0.400m
Shipping Height 0.120m
Shipping Length 0.400m
Shipping Cubic 0.053900000m3
