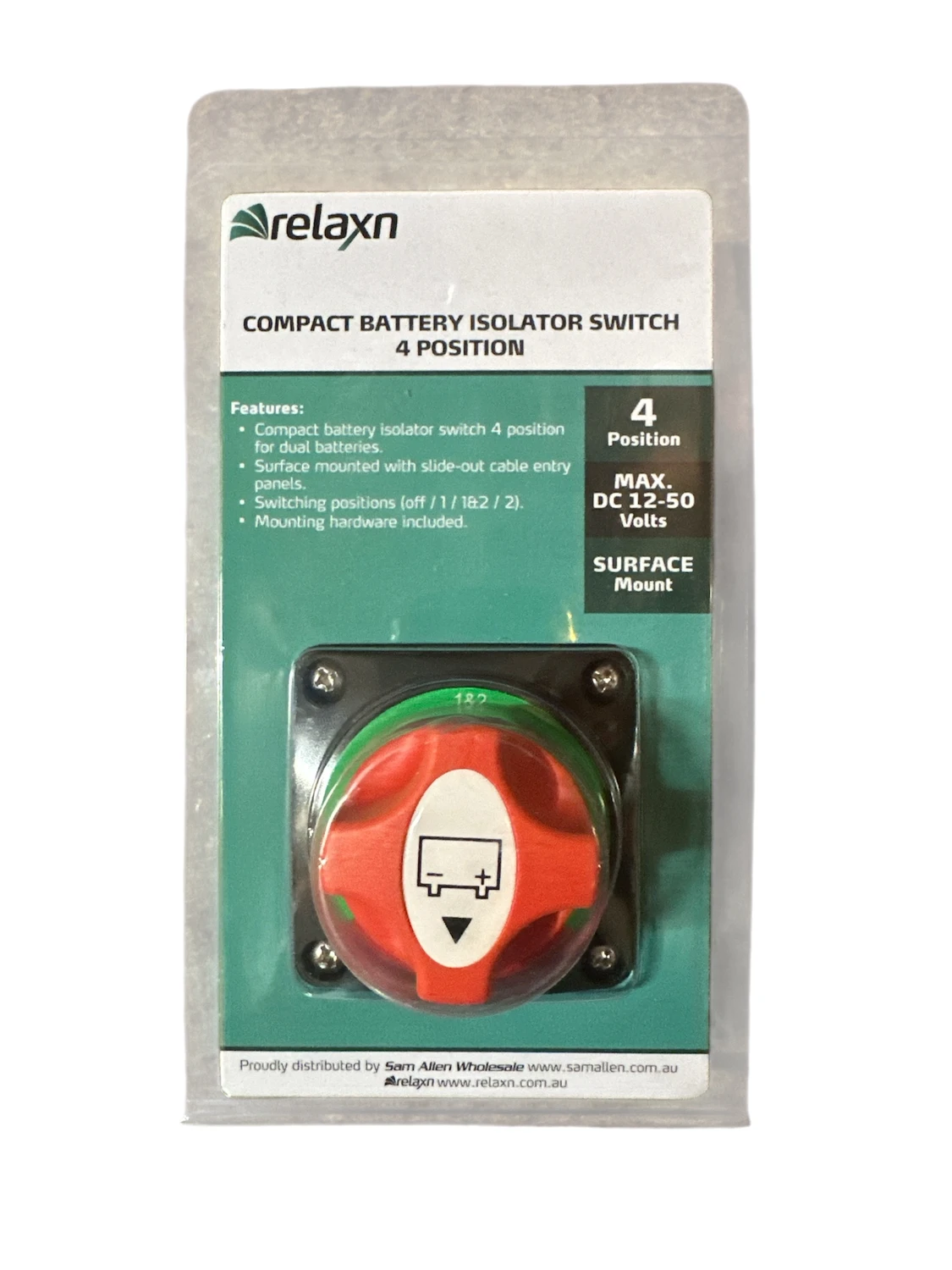

RELAXN® Battery Switch - 4 Position

Robust weather resistant battery switch, features brass terminals and heavy-duty plastic construction making it ideal for marine and automotive applications

Package Includes

1 x RELAXN® Battery Switch - 4 Position

Mounting screws supplied

Features

4 x Switching positions (Off/1/1&2/2)

Max DC 12-50 Volts

1 year warranty

Surface mounted with slide-out cable entry panels

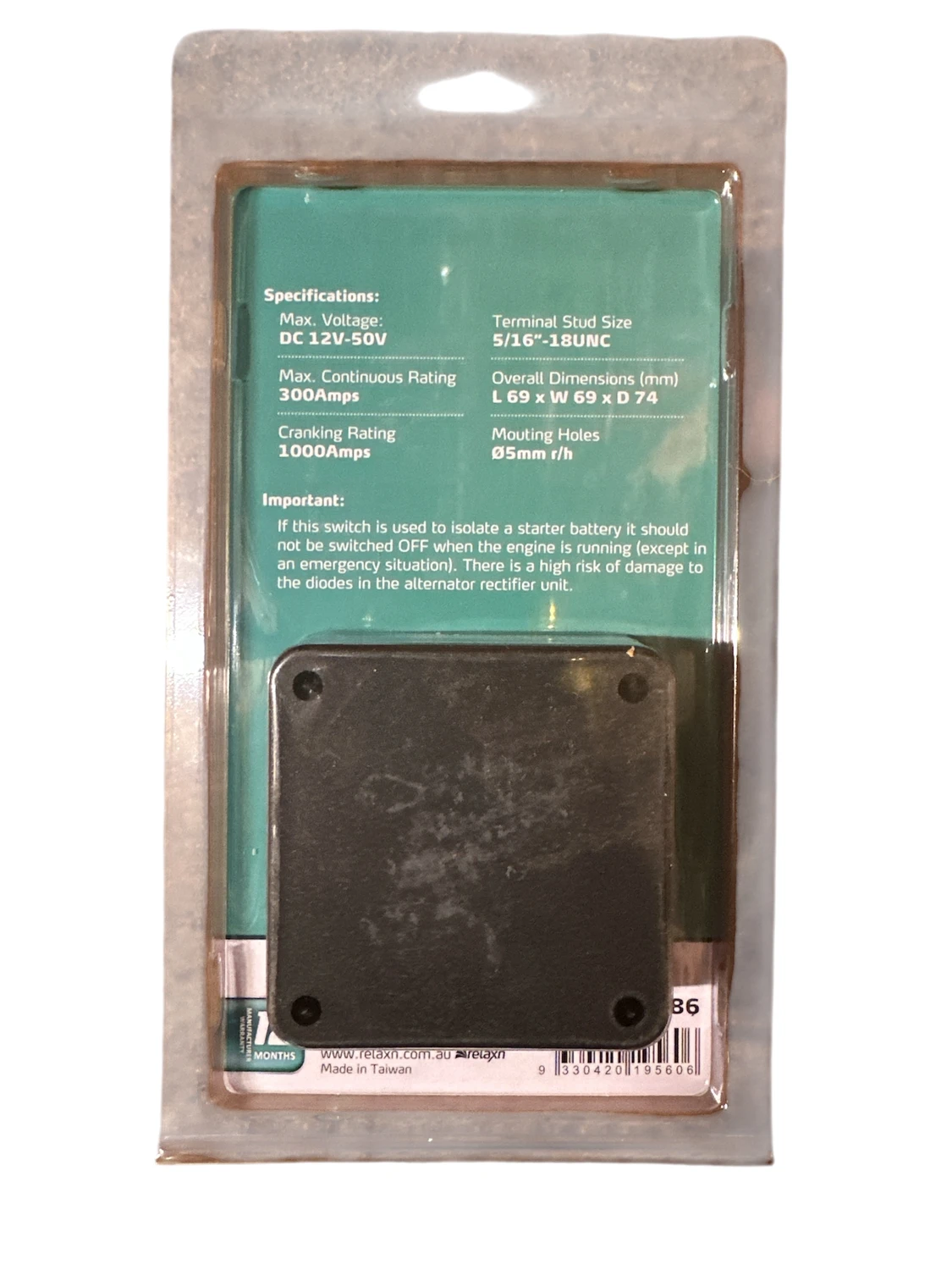

Specifications

PART NO. 530786
Dimensions (L x W x D): 69mm x 69mm x 74mm
Pack Qty: 1
Function: 4
Volts: 12/24V
Max. Continuous Load: 100Amp @ 12V

Terminal Stud Size: 5/16"-18UNC

Mounting Holes:  Ø5mm r/h

Cranking Rating: 1000Amps


Suitable for applications up to 50VDC
1000A @ 12V for 30 seconds
500A @ 24V for 30 seconds
250A @ 50V for 30 seconds
300A @ 12V continuous load maximum
150A @ 24V continuous load maximum
75A @ 50V continuous load maximum

(530786)

SKU 530786
Model # 530786
Barcode # 9330420195606
Brand RELAXN®
Shipping Weight 0.2470kg
Shipping Width 0.070m
Shipping Height 0.190m
Shipping Length 0.070m
Shipping Cubic 0.000931000m3
