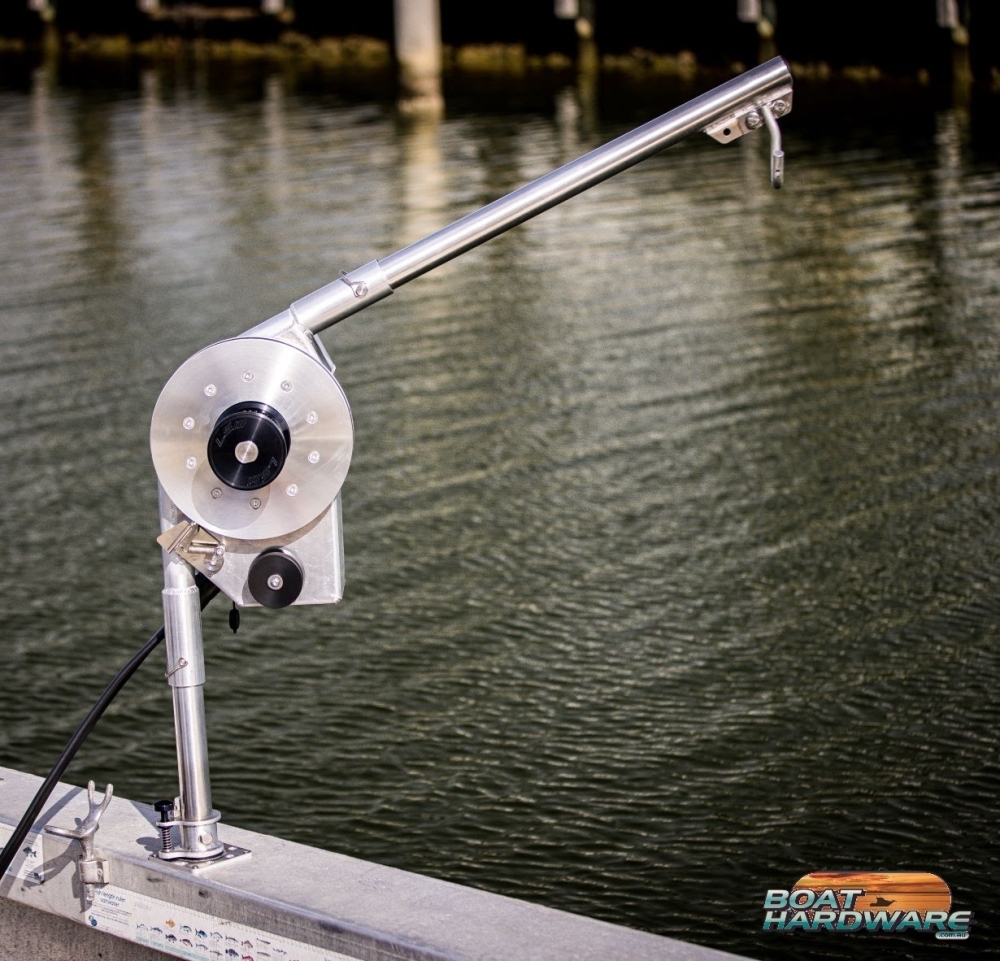

HAULMASTER 1500 HP

The HAULMASTER is a modular unit capable of hauling pots, drop lines, down rigging, gurdy fishing, deep dropping, longlining, & more.

HAULMASTER 1500 features a single speed drive with 1500w output motor.



Using the HAULMASTER

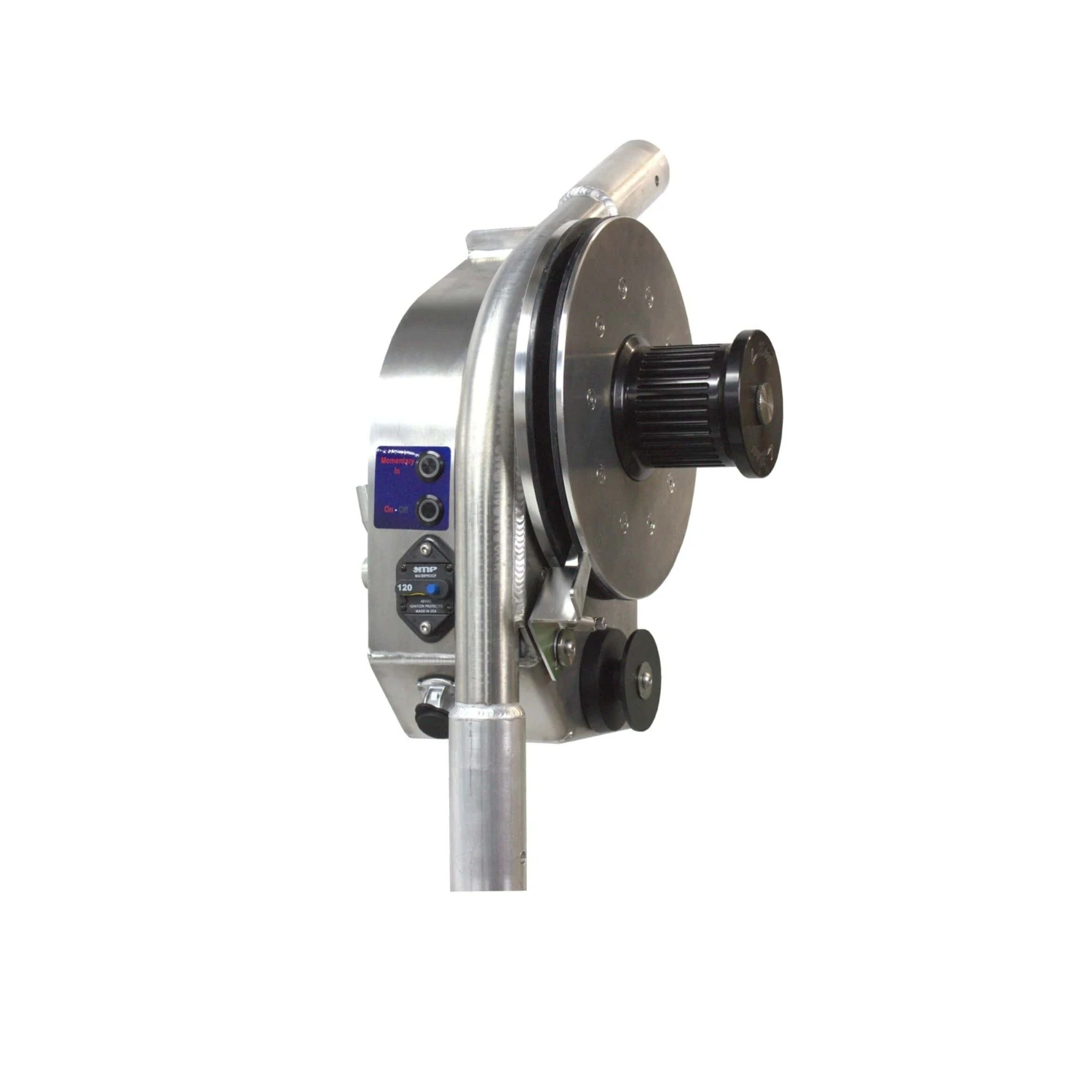

Ensure the direction knob is in the STOP (middle) position.

Plug lead into unit.

Ensure the circuit breaker is engaged by pushing the yellow paddle up.

Engage drive by pressing the power button above the circuit breaker. When the RED light is on the unit is ready to use.

Changing Spools

The HAULMASTER is a modular system and all 4 spools can be run

from the same unit.

PP block & DR downrigger spool are clutch lessad slide onto the shaft with no additional plate.

DD & LL spools use a clutch. The clutch plate must be installed to use.

To change spools remove keeper bolt from the shaft with Tool (14) provided.

*Note this is a LEFT HAND THREAD. Bolt must be turned counter clockwise.

If interchanging from LL to DD spool or PP to DR spool simply slide one spool off and put the new one on.

Replace keeper bolt.

If changing between LL/DD to PP/DR spools, the clutch plate will have to added or removed. This fits over the key on the shaft and is held in place with 2 or 4 grub screws. A 2.5mm Allen key (provided) is required to add or remove the clutch plate.

Maintenance

The HAULMASTER is a sealed unit that can provide a life of service. Here are some tips to improve use & longevity.

  1. Do not leave the power plug in indefinitely. Power plug should be removed at the end of the day and rubber cap placed back over the inlet.
  2. Store plug in a dry place away from water spray when not in use.
  3. Ensure the plug side of the unit (with circit breaker nd on/off button) are away from direct water spray.
  4. Dry the exterior of the unit off before storing.
  5. Remove the locking bolt & spool once annually and clean any salt build up.
  6. If using as a DD or LL application, remove the locking bolt and drag hub once annually and grease the threads on the shaft.
  7. Apply thin oil (not grease) to bearing inside DD & LL spool hub annually.
  8. Do not grease drag washers in DD & LL drag plate, run these dry.

Warranty

Warranty begins from dated proof of purchase. Keep your receipt.

The HAULMASTER features a 5 year recreational (3 year commerical) Warranty. The motor, gearbox, solenoid, switch gear, and main sheave are covered against normal wear and use.

Warranty does not cover Poly inner sheave ring, drag plates, bearing in drag knob, electrical cable, or plugs. Warranty does not cover damage caused due to faulty power supply. Do not open the unit without prior written consent.

* USE THIS PRODUCT AT YOUR OWN RISK *

Lone Star Marine or its distributors will not be liable in the event of damage, accident, injury, or death as the result of use, misuse or installation of this product. Lone Star Marine Pty Ltd or its distributors will not be liable in the event of damage, accident, injury, or death as the result of mechanical or electrical failure of this product. Always keep hands away from the winch and rope while in operation. LSM winches are verypowerful and can cause series injury if hands, fingers or other body parts are caught between the drum and cradle or caught up in the rope & chain. Please keep children and pets away from this product while in use.
