GX2 1000W Anchor Winch GOLD Combo 90m x 8mm Kit

SUITS: UP TO 8 METRE BOATS

Lone Star GX Series, Simply the Best - Watch the Epic Torture Test of Four Anchor Winches Compared.

Key Benefits:

  • Unrivalled performance and reliability have solidified Lone Star as the top-selling and most coveted brand of Anchor Winches in Australia.
  • Australian Made, built for harsh Marine conditions
  • Lifetime Warranty for Water Ingress
  • 5yr + Life Warranty for peace of mind
  • Max Retrieval/Fall Rate: 46 meters per minute

Package Includes:

  • 1 x 1000 Watt GX2 Lone Star Anchor Drum Winch

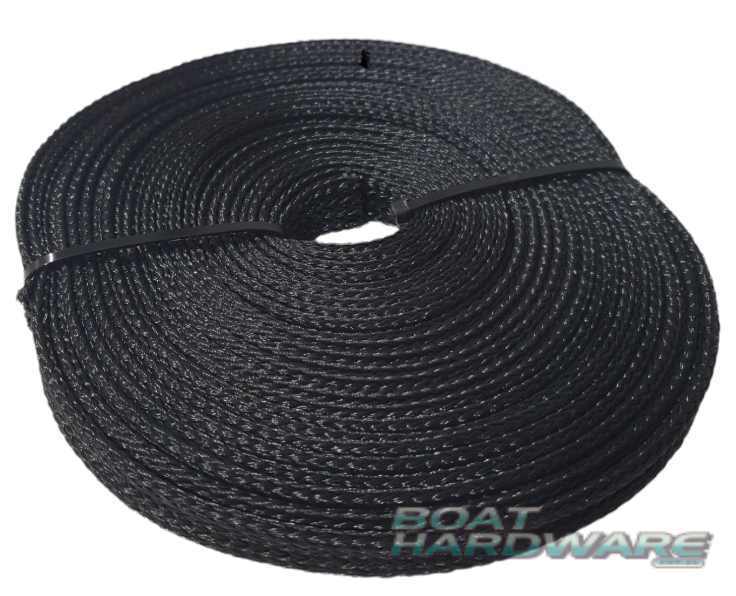

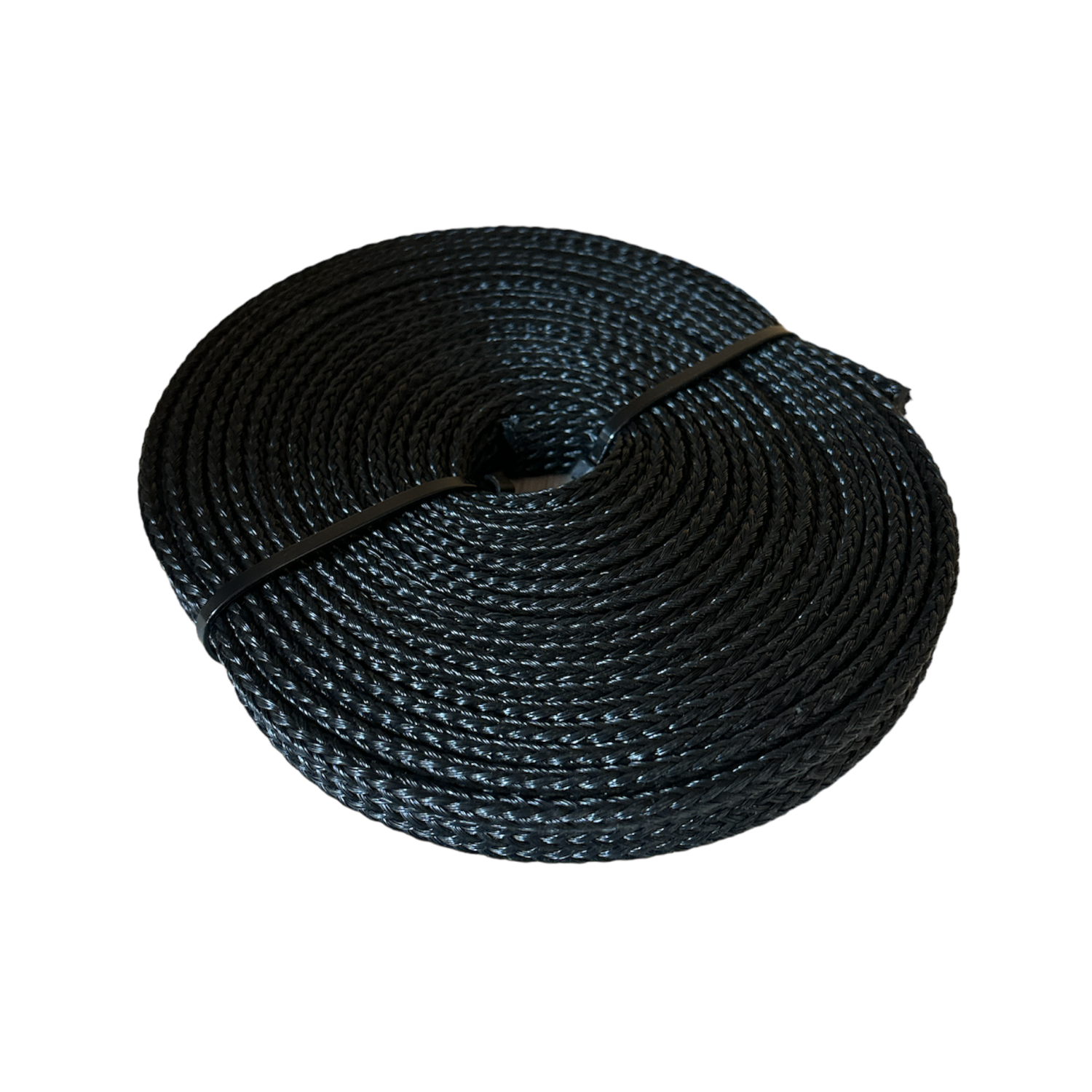

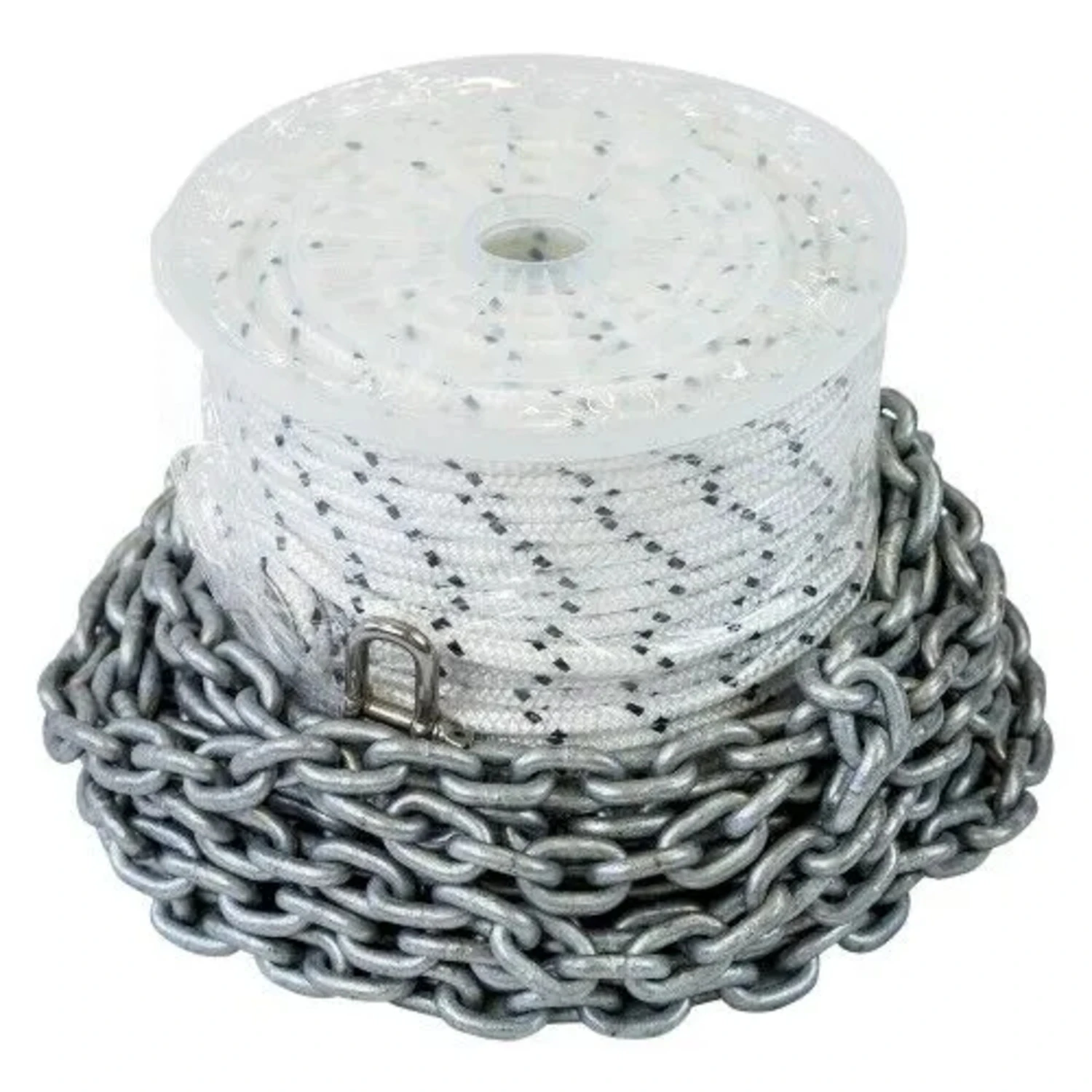

  • 1 x Rope & Chain Kit (90m X 8mm DB Nylon + 7m x 8mm ShortLink Chain)
  • 1 x DELUXE HAWSE PIPE

  • 1 x LONE STAR WIRELESS REMOTE (PAIR) FOR ANCHOR WINCH

  • 1 x EASY LAY Anchor Bridle

  • 1 x Chain Guard (8mtr) CG8x8
  • 1 x Stainless Steel Anchor Swivel

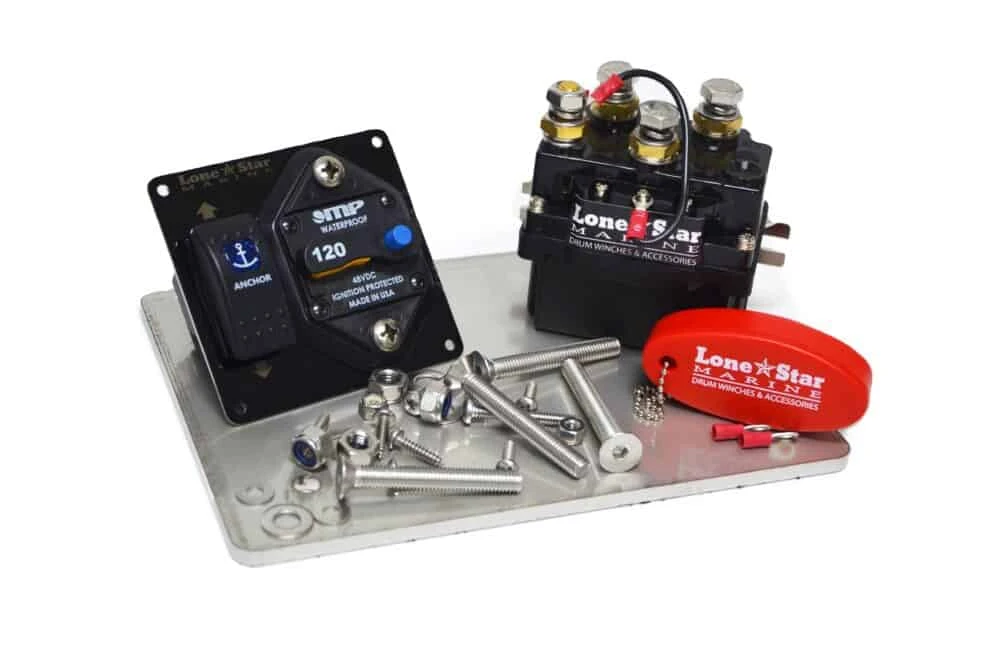

  • 1 x 120AMP Circuit Breaker
  • 1 x Switch Panel
  • 1 x Marine Grade 400AMP Anchor Solenoid
  • 1 x 6MM Stainless Steel Backing Plate
  • All Fixing Hardware
  • 5-Year Plus Lifetime Warranty

Wiring Loom Sold Separately:

  • Wiring Loom is sold separately due to the differeing lengths required throughout vrious size boats
  • See our range of Wiring Looms

More Information:

  • The Lone Star GX2 Anchor Winch is designed for durability and performance, with custom-engineered components and a 5 + Life Warranty.
  • Available with various rope & chain combinations to suit most vessels up to 8 meters.
  • Features Australian Made 316 stainless and machined & anodized 6061 T-6 aluminium construction.

Specifications:

  • Max Retrieval Rate: 46 meters per minute
  • Max Fall Rate: 46 meters per minute
  • Vessel Length: Up to 8 meters
  • Power Supply (DC): 12V
  • Motor: 1000 Watt
  • Drum Size: 250mm
  • Constructed from 6mm plate 316 stainless steel
  • Fully sealed motor and gearbox

Installation/Mounting:

  • Versatile mounting options including anchor well, deck mount & cabin mount
  • Drive (motor and gearbox) can be mounted at 24 different positions
  • For installation instructions, refer to the Anchor Winch Installation Guide.

DETAILS:

The Lone Star GX2 Anchor Winch is an undisputed champion in the marine industry, boasting unparalleled motor performance and a level of reliability that is second to none. In rigorous torture tests, it has proven its mettle by outlasting all competitors, cementing its position as the ultimate anchor winch.

What truly sets the GX2 apart is its exceptional motor performance.
Designed for power and precision, it effortlessly handles the most demanding anchoring tasks with ease. Whether you're anchoring in calm waters or facing the challenges of rough seas, the GX2 delivers consistent, robust performance that you can rely on. But where the GX2 truly shines is in its extraordinary reliability.

In a gruelling torture test where it endured an astonishing 100 continuous runs, the GX2 emerged victorious, still running flawlessly. In comparison, its closest rival could only muster 43 runs before faltering. This remarkable durability speaks volumes about the GX2's ability to withstand the harshest conditions, ensuring it will never let you down when it matters most. Australia’s most popular winch model, you may have seen the GX2 in the famed Drum Winch Shootout. The GX2 boasts jaw dropping longevity and performance and is available with 5 different rope & chain combinations to suit most vessels to 8m and a variety of anchoring styles.

The GX™ series have become the new workhorse & standard in perfectly engineered anchoring systems at the right price. Featuring all Australian Made 316 stainless and machined & anodized 6061 T-6 aluminium construction, “Real Italian” transmissions, triple sealed bearings, twin shaft bearing systems, machined slimline ‘fast change’ collars, & an all new emergency release as standard on all models.

Motors are once again custom manufactured exclusively for LSM and are pre-rigged with twin leads for easy installation. From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are made to get wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty. Performance, reliability & raw power in a compact frame design, the GX2 is the answer for most trailer boat fishermen. Thanks to the well oversized gearing and motor this unit can easily be fitted to boats to 7m for saltwater use and much larger for freshwater applications.

Huge 1000W Motor Perfect for wet wells and deck mounts Boats to 8m Fast Drop/Retrieval Rating Fully Sealed Motor and Gearbox Designed & Manufactured in Australia Everyone wants more power….so we listened! The GX2 features an oversized 1000W motor in wider yet shorter design than its predecessor for more versatile mounting. Each GX series winch features custom engineered drive components to deliver a faster speed with an amazing amount of grunt. No bushes, split pins, actuators, springs, clutches, or additional circuitry to fail. Nothing extra to buy. Just fast, reliable anchoring.

Ideal for boats to 8 meter (or look at the GX3 or GX4 for larger boats, or the GX1 for boats smaller than 6m) plus Every Lone Star Marine Drum Winch Includes a 5 + Life Warranty 1000W Purpose Built Permanent Magnet Motor, 4 Brush Design IP68 (Fully Waterproof) Machined Solid 25mm 316SS Spool Shaft High Polished 6mm 316SS Plate Construction Throughout Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive) Machined Roller Bearing Cover (triple sealed) No Paint or Silicon Sealants No Mild steel outputs or fittings Fully Waterproof Machined Motor (LSM Exclusive) Prerigged with tinned cable leads for easier fitting Machined (not cast) Fastchange Collar Perfect for Deck Mounting Holds 90m of 8mm Rope + 7m x 8mm chain Larger Capacity Dyneema Kits are Available Drop/Retrieve up to 156Ft (46m) per minute 12 Adjustable Gear/Motor Mounting Positions Manual Release Feature in the event of power loss 3000kg Holding Power at Anchor-No need to tie off Huge 1360kg Max Pull (empty drum) 110kg max recommended working load All 316SS and Machined 6160 Alloy Construction Rounded Style Transmissions for easier fitting-Made in Italy Designed and Manufactured in Australia Each Kit Includes the Following as Standard: Winch 6mm Base Plate 400 Amp Solenoid Genuine MP Marine Grade Circuit Breaker (made in the USA) Anodized Alloy Toggle Switch Panel All Nuts, Bolts, & Washers Needed for Installation Warranty Information, Switch Panel Template, Installation Instructions.

See our Anchor Winch Guide from the Boating Hub

(GX2GOLD_90)

SKU GX2GOLD_90
Model # GX-2Combo90mx8mmKitGOLD
Brand Lone Star
Format Brand New
