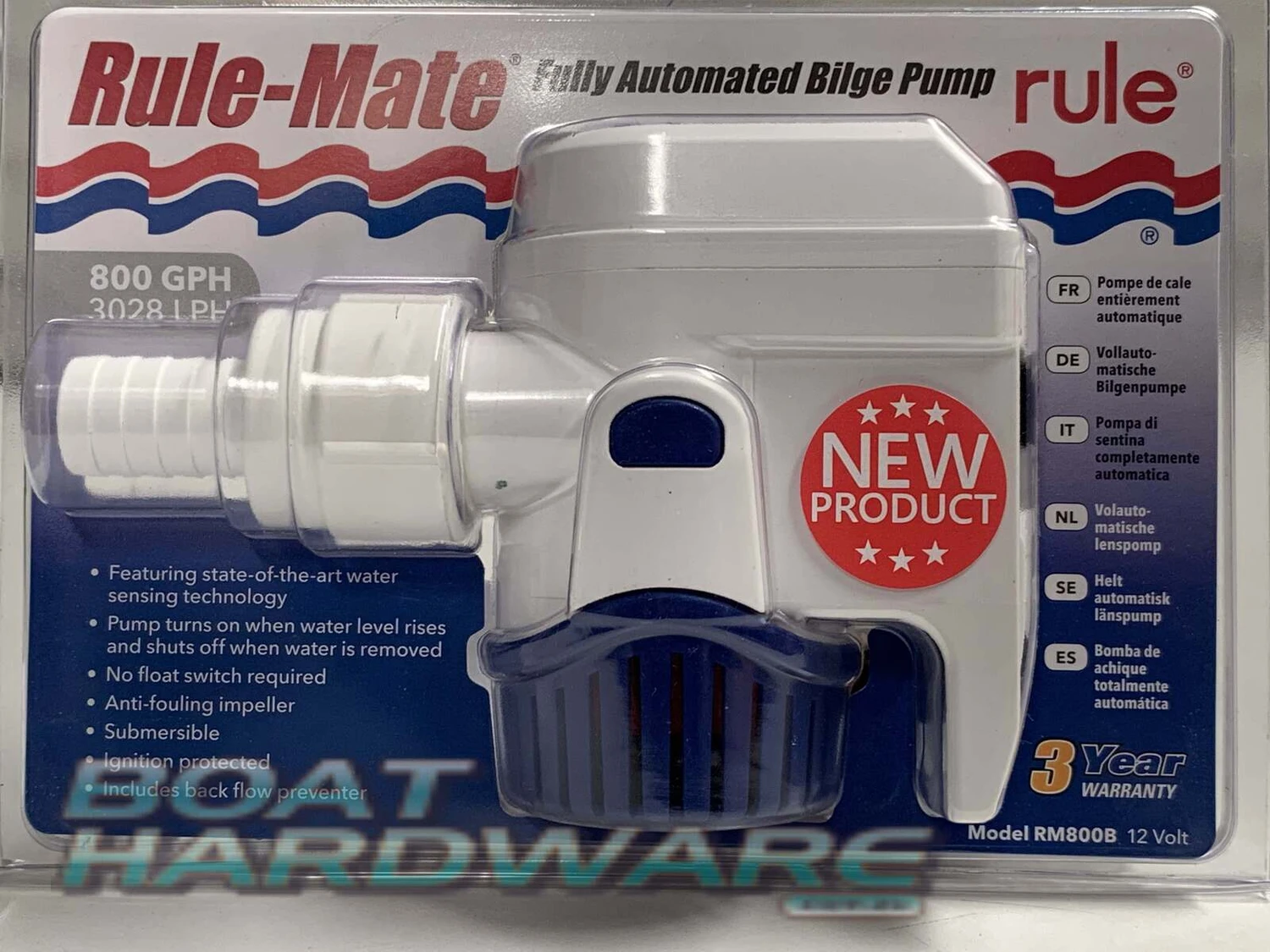

Rule Mate Fully Automatic Bilge Pump 800GPM

RULE-MATE - AUTHENTIC BRAND (Model RM800B)

FOR BOATS: Up to 6m ---  3 year limited warranty

Features

• No float switch needed – Saves space and reduces installation complexity
• 3,000kg Holding Power at Anchor - No need to tie off
• Keeps bilge ultra-dry – Reduces odour, boat weight, and fuel consumption
• Touch-to-test functionality – Easy maintenance and peace of mind
• Quiet, efficient, and automatic – Fully submersible with no battery drain while idle
• Simple installation – Includes both straight and 90-degree hose outlets
• Reliable and long-lasting – Built-in thermal overload protection and 3-year limited warranty

Smart, Automatic Operation

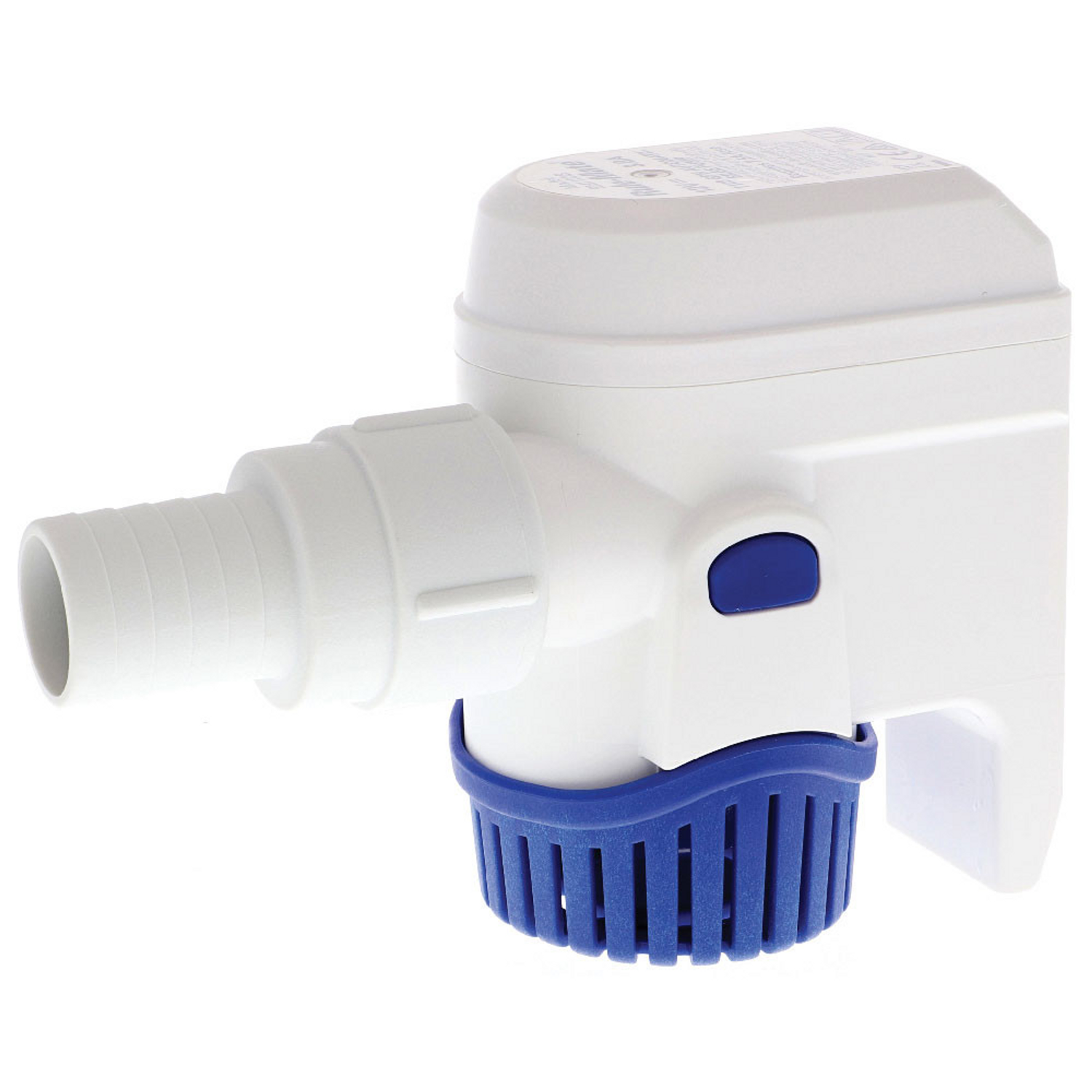

The Rule-Mate RM800B is a fully automatic bilge pump that combines a water sensor and pump in one compact unit. When water reaches a certain level, the sensor activates the pump. Once the water is cleared, it shuts off automatically. No separate float switch is required, simplifying your bilge system.

Advanced “Spongeability” Technology

This unique feature ensures the bilge is left drier than ever, minimizing unpleasant smells, cutting excess weight, and helping improve fuel efficiency. A drier bilge means a cleaner, lighter, and more efficient boat.

Easy Testing with Pump Check Button

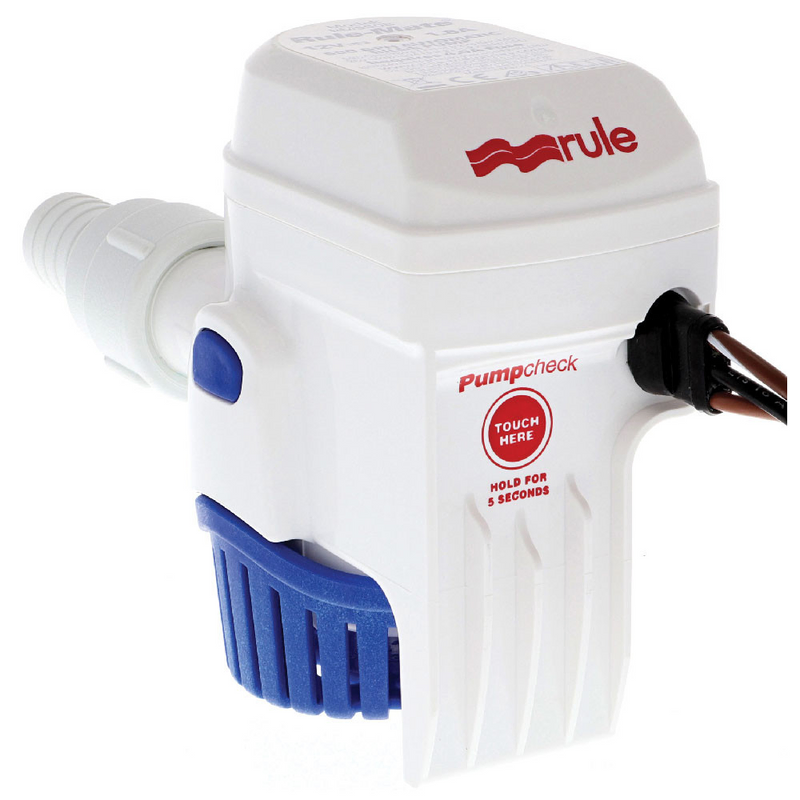

Need to verify the pump is working? Simply press and hold the built-in pump check button to activate a quick test cycle. Great for regular checks before heading out on the water.

Built for Easy Setup

The pump includes a threaded discharge port with an O-ring seal and comes supplied with both straight and 90-degree 19mm (3/4") hose fittings, offering flexibility for various plumbing setups. The internal wiring design also simplifies installation.

Safe and Durable Design

With thermal overload protection, an anti-fouling impeller, and a removable strainer for clearing debris, this bilge pump is engineered to last. It's ignition protected and safe for marine use, drawing just 3 amps at full output.

Technical Specs

• Voltage: 12V
• Max Flow Rate: 800 GPH (3028 L/hr)
• Current Draw: 3 amps
• Discharge Outlet: 19mm (3/4") threaded (both straight and 90° options included)
• Footprint: 110mm x 70mm (oval base)
• Overall Dimensions: 190mm (L) x 80mm (W) x 115mm (H)

Whether you're fitting out a new boat or upgrading an old system, the Rule-Mate RM800B bilge pump is a smart, efficient, and low-maintenance solution for keeping your bilge clean and dry.

The Rule-Mate RM800B is a fully automatic bilge pump that combines a water sensor and pump in one compact unit. When water reaches a certain level, the sensor activates the pump. Once the water is cleared, it shuts off automatically. No separate float switch is required, simplifying your bilge system.

Advanced “Spongeability” Technology

This unique feature ensures the bilge is left drier than ever, minimizing unpleasant smells, cutting excess weight, and helping improve fuel efficiency. A drier bilge means a cleaner, lighter, and more efficient boat.

Easy Testing with Pump Check Button

Need to verify the pump is working? Simply press and hold the built-in pump check button to activate a quick test cycle. Great for regular checks before heading out on the water.

Built for Easy Setup

The pump includes a threaded discharge port with an O-ring seal and comes supplied with both straight and 90-degree 19mm (3/4") hose fittings, offering flexibility for various plumbing setups. The internal wiring design also simplifies installation.

Safe and Durable Design

With thermal overload protection, an anti-fouling impeller, and a removable strainer for clearing debris, this bilge pump is engineered to last. It's ignition protected and safe for marine use, drawing just 3 amps at full output.

DIMENSIONS

Footprint: 64mm x 57mm (Oval)

Dimensions : L 88m (not including discharge) x W 73mm x H 112m

The Rule-Mate RM800B Bilge Pump is a fully automated, high-performance solution for keeping your bilge area dry and your boat safe. Designed by the trusted Rule brand, this authentic bilge pump delivers up to 800 gallons per hour (3028 litres per hour), making it ideal for small to mid-sized vessels. It features a built-in water sensor that activates the pump automatically when water is detected—no float switch needed. With its eco-friendly technology, it prevents motor oil from discharging into waterways, helping protect the marine environment. The RM800B operates on 12 volts, draws only 3 amps at max flow, and includes a 19mm (3/4") hose barb outlet and a backflow preventer. Designed for durability, it includes thermal overload protection, an anti-fouling impeller, and a removable strainer for easy cleaning. Whether you need reliable bilge pump performance for regular use or emergency conditions, the RM800B is built to handle it with ease.
