SUPER SARCA 3 Anchor with 3 Way Swivel Shackle

• Suits Boats 6.5m - 8.5m
• Keep your Anchor from twisting during retrieval and deployment
• We have kitted up this Swivel & Shackle KIT for you.  This setup will prevent jamming and allow better swivel action
• 9kg
• Manufactored in Australia
• Hoop on the rear of the anchor ensures that the Super SARCA rolls over in most situations, allowing the toe to be in its best possible position to penetrate the ocean floor and reducing dragging as the fluke digs in
• No more chain tangled around and between the flukes preventing the anchor from taking hold
• Super SARCA's unique tangle-resistant design improves anchor efficiency and safety
• Unique design also creates a pumping action which sinks the anchor deeper
• Teamed with the Super SARCA's 360° pivoting action, this makes the Super SARCA resistant to wind and tide changes
• Incorporates an automatic reset trip release that offers you the highest rate of recovery from rocks
• When anchoring in and around bommies, reef or coral the Super SARCA has less chance of getting stuck and will create less damage to the environment
• Light in weight, easy to handle and contains no lead in the design to contaminate the marine environment
• Available in top-quality 316 stainless steel or hot-dip galvanized mild steel
• Certified as high holding power anchors by the Victorian Marine Board and MSA witnessed by Loylds of London to comply with the USL code; a testament to their efficiency

Specifications

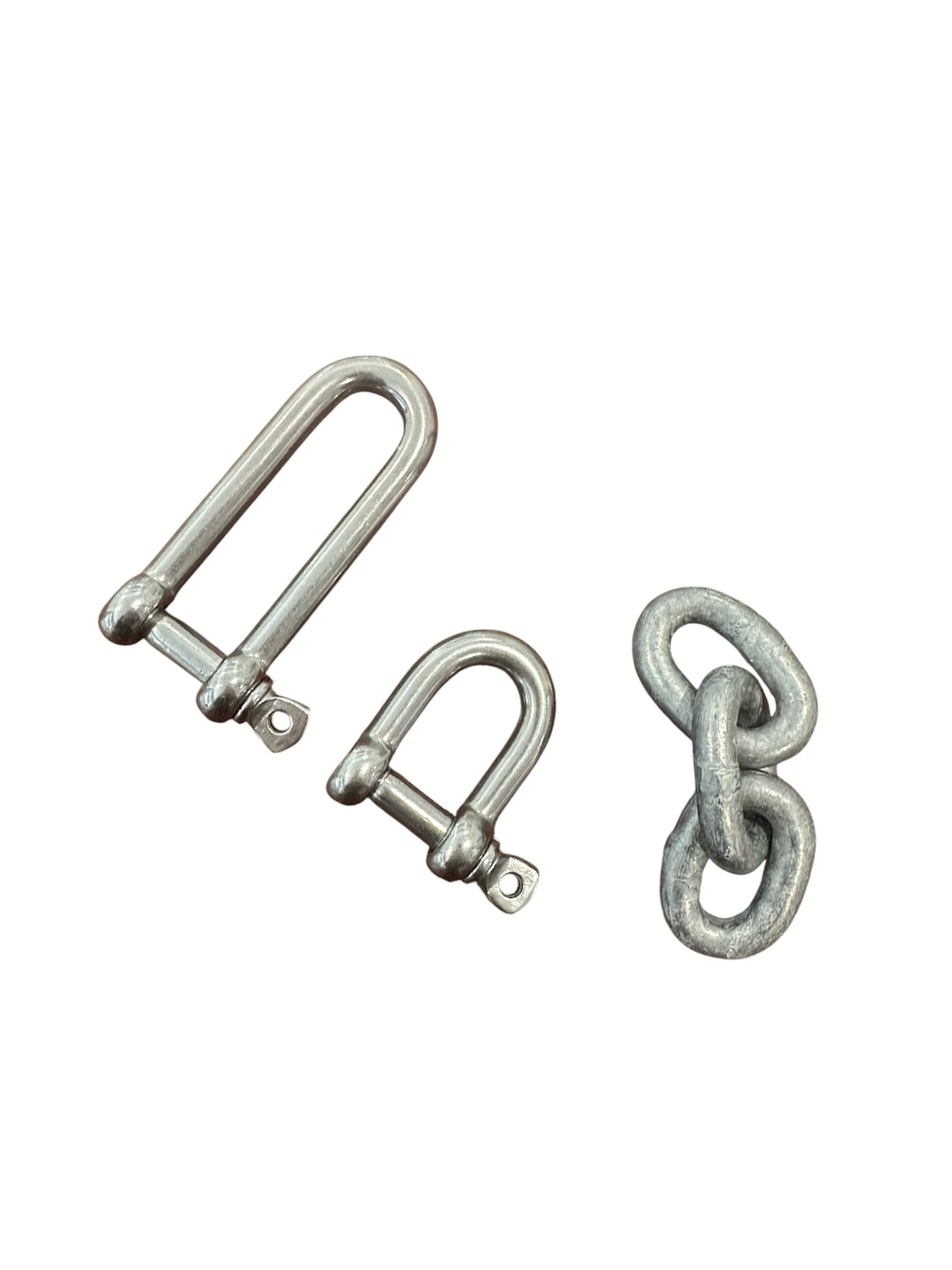

Package includes:

1 x Super Sarca No. 3 Galvanized Anchor

1 x 3 Way Swivel (316 Marine Grade Stainless Steel)

1 x 8mm Long D Shackle (316 Marine Grade Stainless Steel)

3 Links of 8mm Galvanised Shortlink Anchor Chain



3 Way Anchor Swivel

Length: 158mm / Diameter: 35mm / Chain Size: 10mm

Pin Diameter: 12mm & 10mm

Fork Gap: 23mm & 12mm

Material: 316 Stainless hand polished Steel

Weight Grade: 3000lb/1350kg (recommended but not tested)



8mm Stainless Steel Long D shackle

Material: 316 stainless hand polished steel

Screw in pin

Internal Length: 60mm

Internal Width:16mm



8mm Short Link Anchor Chain

Material: Hot dipped Galvanised



SUPER SARCA No. 3 Anchor

Galvanised
