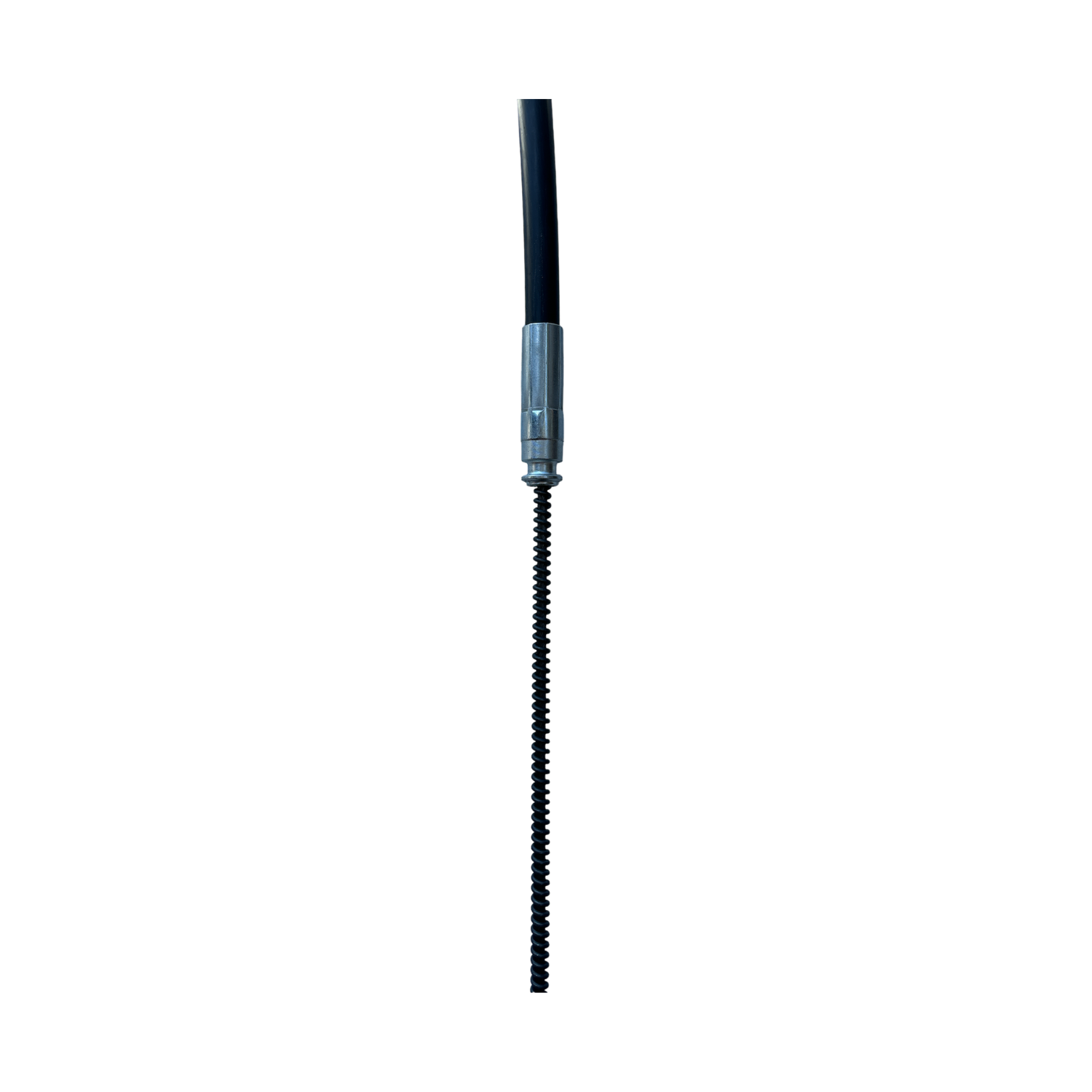

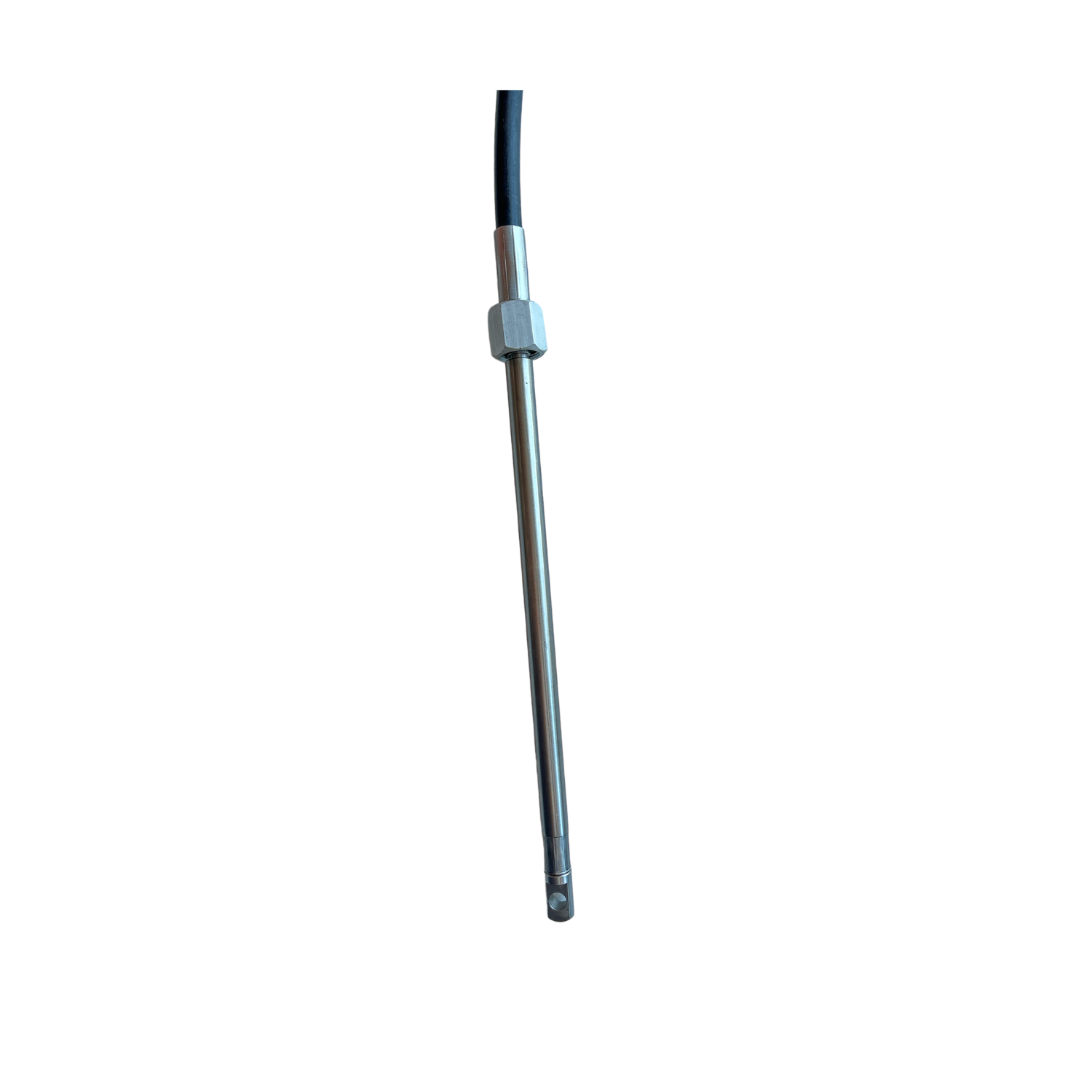

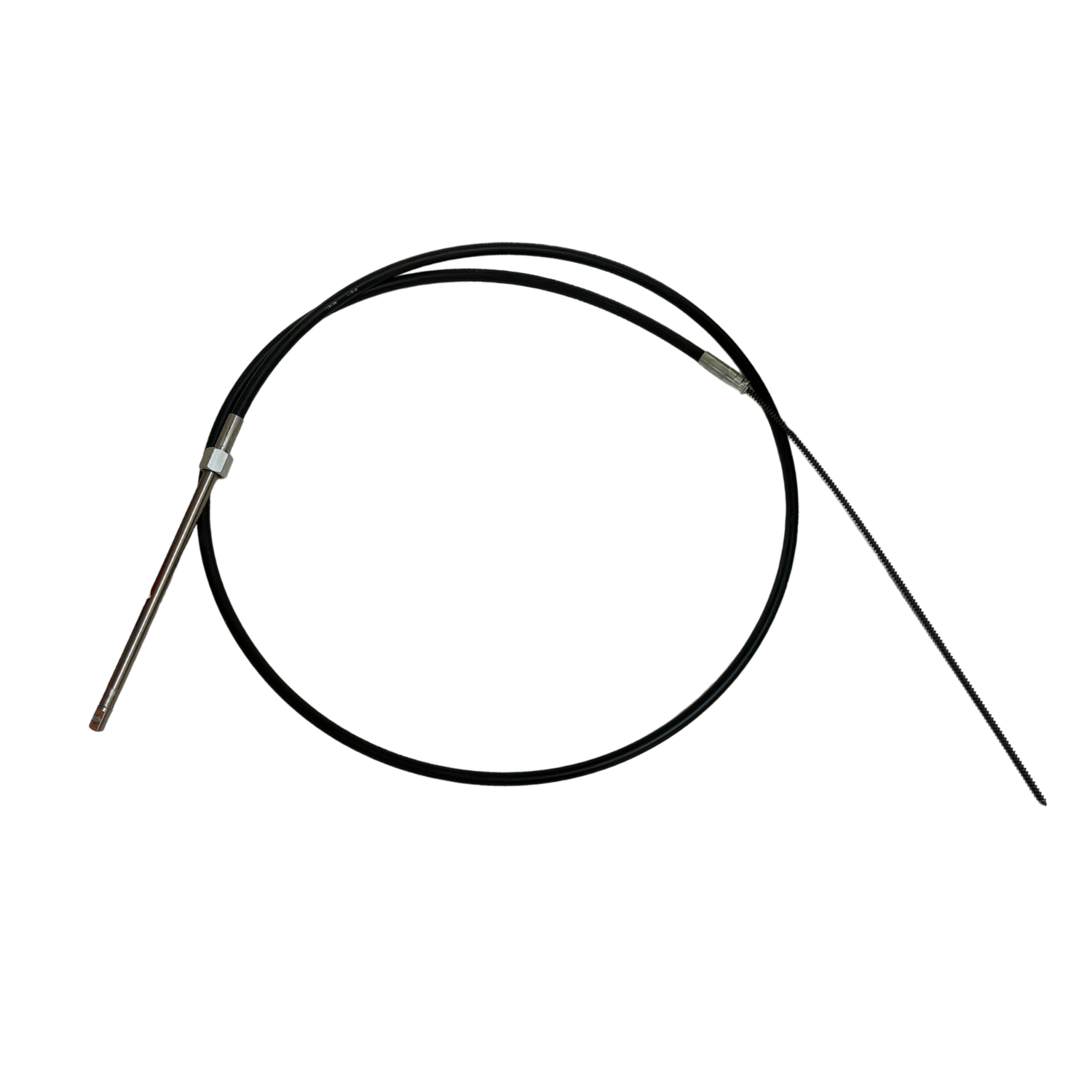

Multiflex Steering Cable

Suit the Boat Builder or Replacement Market

Package Includes

1 x Multiflex Steering Cable (16ft/4.88mtr)

Specifications

16 foot (4.88mtr) Cable with Stainless Steel Ends

Minimum Bend Radius of 200mm

Stroke Length of 228mm

Cable Length - PLEASE Refer to Measurement Method Guide Below

Please visit our Store for other lengths

Features

Quick Connect Steering Cable which enables the cable to be attached directly to the tilt tube on all popular brands of engines

Compatible with most Brands like Teleflex, Ultraflex & Morse

Steering Cable - replacement for Ultraflex M66, Teleflex SSC62 or SSC92 or Morse D345 cables. It also can be used with the adaptor nut to connect to older style double nut helms.

Will fit most helms with quick fit connection.

Available in many lengths to suit boat size.

Specifications :

Maximum Travel : 9inch (230 mm)
Minimum bend radius : 8 inch (200mm)
Maximum working load at Tiller end : 5000N (500kg)
Cable Outer Diameter : 15 mm
Spiral inner cable Diameter : 8 mm



(RWB7608)

SKU RWB7608
Model # RWB7608
Barcode # 9324608011666
Brand MuliFlex
Shipping Weight 3.4000kg
Shipping Width 0.430m
Shipping Height 0.050m
Shipping Length 0.560m
Shipping Cubic 0.012040000m3
