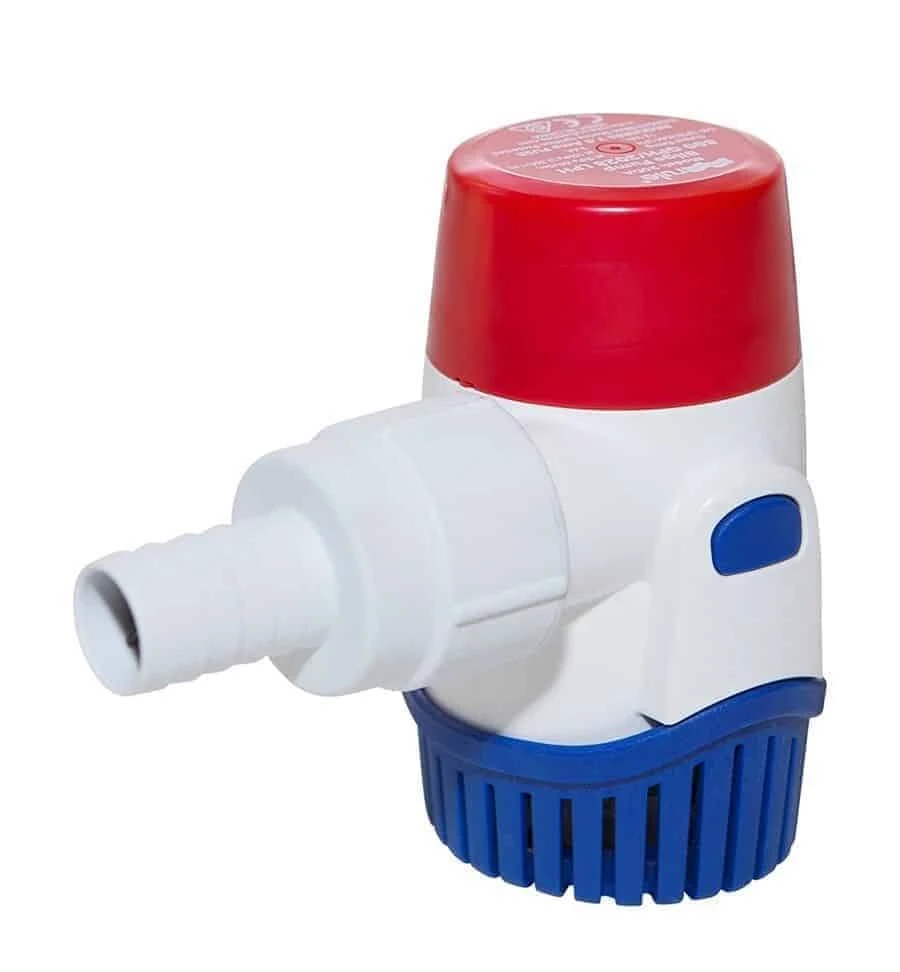

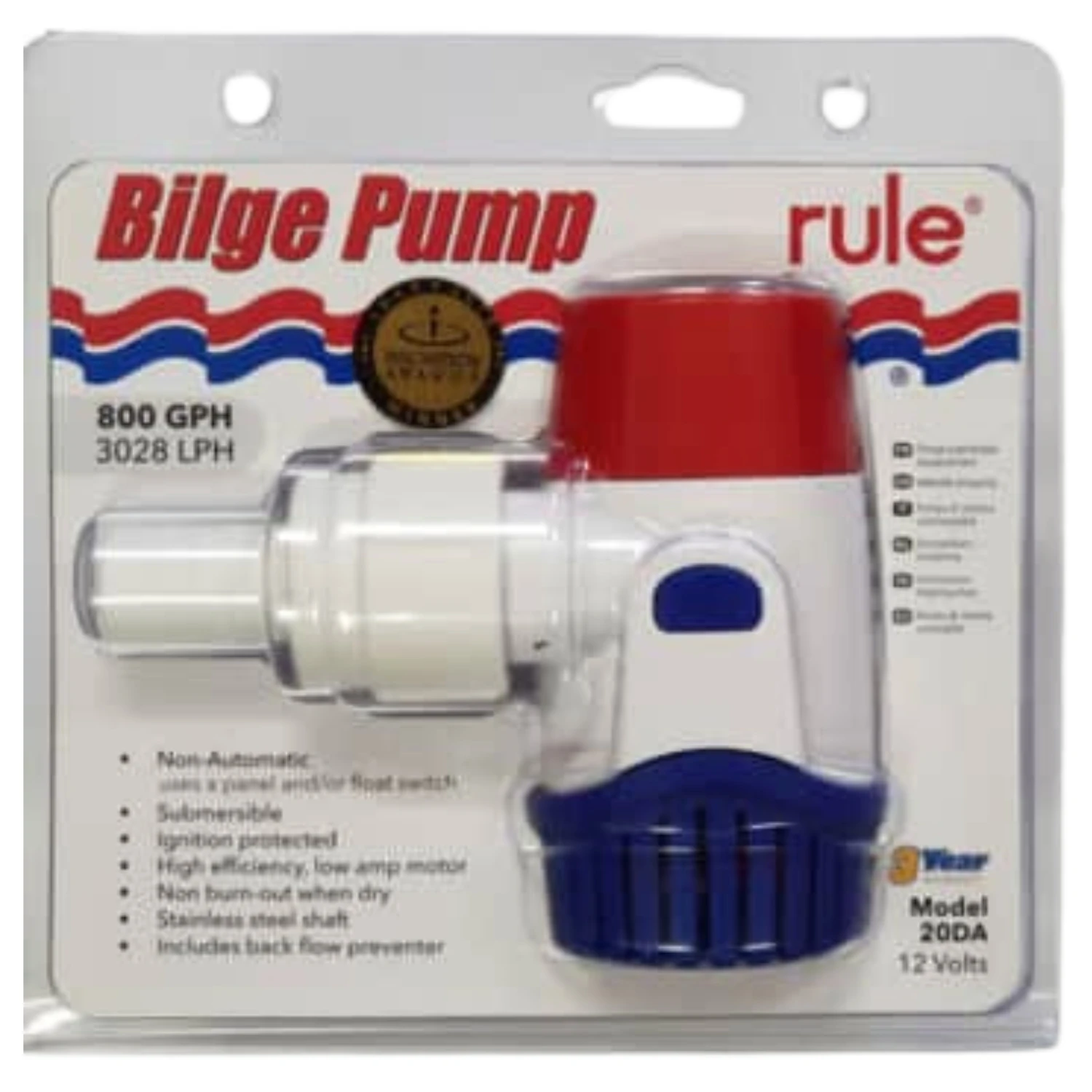

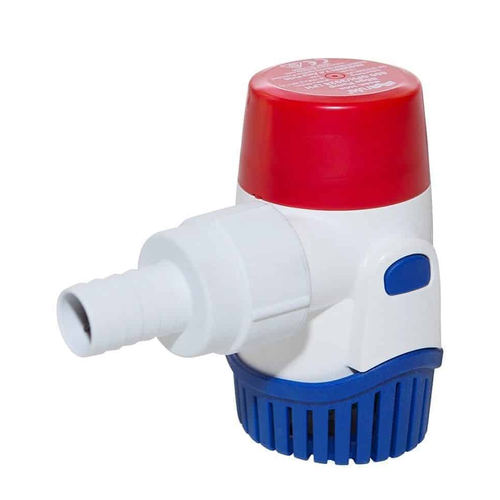

Electric Bilge Pump

• 800 GPH
• Non Automatic
• Submersible
• IBEX Innovation Award Winner
• 3 Year Limited Warranty
• 12V DC
• 2.1 amp @ Max. Flow
• \Non-Automatic - uses a panel and/or float switch
• GPH Rating is now at 12v rather than 13.2v with previous models meaning the pump will produce its rated flow at a lower voltage - more typical of on board volatage supply
• 16 gauge tin coated copper electrical wiring with silicone infused water clocking feature
• High Flow – optimized impeller to provide greater flow at low amperage
• High efficiency, low amp motor include true Electromagnetic suppression (EMC)
• Built-in Thermal Cut-Off (TCO) in the motor provides added protection for pump and vessel
• Back Flow Prevention - now includes a check valve in the discharge port which reduces the amount of water draining back from the pump discharge hose into the bilge
• Hidden Air Vents in the pump help prevent air locking in challenging plumbing installations and helps with the check valve operation
• Threaded Discharge port - easier installation, easier maintenance.  Discharge hose port is included with each pump
• Snap-on strainer base
• Compact size & design to fit in the smallest places
• Full submersible
• Ignition protected motors
• Stainless steel shaft
• Non burn-out when dry

Ensure your boat stays dry and safe with this high-performance 800 GPH Electric Bilge Pump, designed for maximum reliability in marine environments. This non-automatic bilge pump is fully submersible and ideal for boats using a panel or float switch for manual activation. With its optimized impeller and low-amp, high-efficiency motor, it delivers strong water flow at just 12V—perfect for typical onboard power conditions. Awarded the IBEX Innovation Award, this pump features backflow prevention, electromagnetic suppression (EMC), thermal cut-off protection, and hidden air vents to prevent air locking during operation. The compact design includes a snap-on strainer base and threaded discharge port for quick installation and maintenance. Built tough with a stainless steel shaft and ignition-protected motor, this electric bilge pump offers dependable performance with a 3-year limited warranty.

Package Includes

1 x Electric Bilge Pump 800 GPH

1 x 19mm Straight Hose Barb

Specifications

Height: 120mm

Width: 74mm

Depth: 64mm

Fuse Size: 4A Fuse Required (not included)

Foot Print: 64mm x 57mm Oval

Amp Draw: 3.4A (at Maximum Flow)

Voltage: 12V DC

Port Size: 19mm NPSM
