SARCA Anchor 2 with 3-Way Swivel  (For boats 4.5m - 6m)

Superior Holding Power. Tangle-Free Design. Environmentally Friendly.

Engineered for reliability and efficiency, the SARCA Anchor 2 with integrated 3-way swivel is the ultimate anchoring solution for serious boaters. Featuring a rear hoop, this anchor is designed to self-orient, rolling over into the ideal position to maximize seabed penetration and minimize drag.

✅ Auto-Roll Design – Rear hoop ensures the anchor rolls into optimal penetration position every time

✅ Tangle-Resistant Geometry – Prevents chain from fouling between the flukes, reducing failed sets

✅ Self-Penetrating Action – Unique shape and 360° pivoting motion create a pumping effect to dig deeper

✅ 3-Way Swivel Included – Enhances pivot resistance and flexibility, especially in shifting wind or current

✅ Automatic Trip Release – Designed for fast recovery from rocks, coral, and bommies

✅ Environmentally Friendly – Lead-free design protects marine ecosystems

✅ Certified Performance – Rated High Holding Power by the Victorian Marine Board, MSA, and witnessed by Lloyd’s of London

Why Choose the SARCA Anchor 2?

Unlike traditional anchors, the SARCA’s design adapts to changing conditions, holding firm in sand, mud, reef, or rocky bottoms. It's built to perform under pressure—reducing environmental impact while increasing reliability and safety on the water.

Specifications

• 1 x Sarca No. 2 Galvanized Anchor
• 1 x 3 Way Swivel (316 Stainless Steel)
• 3 Way Anchor Swivel - Features

Tangle-Free Anchoring. Maximum Holding Power. Built for Australian Waters.

Take the stress out of anchoring with the Super SARCA 2 Anchor, now paired with a 316 Stainless Steel 3-Way Swivel. Designed and manufactured in Australia, this premium anchoring setup offers superior seabed penetration, easy recovery, and zero chain twist—making it ideal for recreational and serious boaters alike.

Anchor Features:

✅ Size: 6kg – Suitable for boats 4.5m to 6.0m in length (up to 1.5 Tonnes)

✅ Galvanised Finish – Durable and corrosion-resistant for long-term use

✅ Superior Holding – Unique fluke design penetrates and holds in mud, sand, rock, and reef

✅ Auto-Resetting System – Stainless D-shackle slides and resets for easy redeployment

✅ High Recovery Rate – Built-in release slots and long shank reduce suction and sticking

✅ Made in Australia – Designed for our unique marine environments

✅ Certified – High Holding Power rated by industry authorities

Minimum Leader Chain Recommended: 5m of 8mm chain

Dimensions:

• Width: 375 mm

• Height: 280 mm

• Length: 640 mm

• Stainless Steel Shackle Size: 8 mm

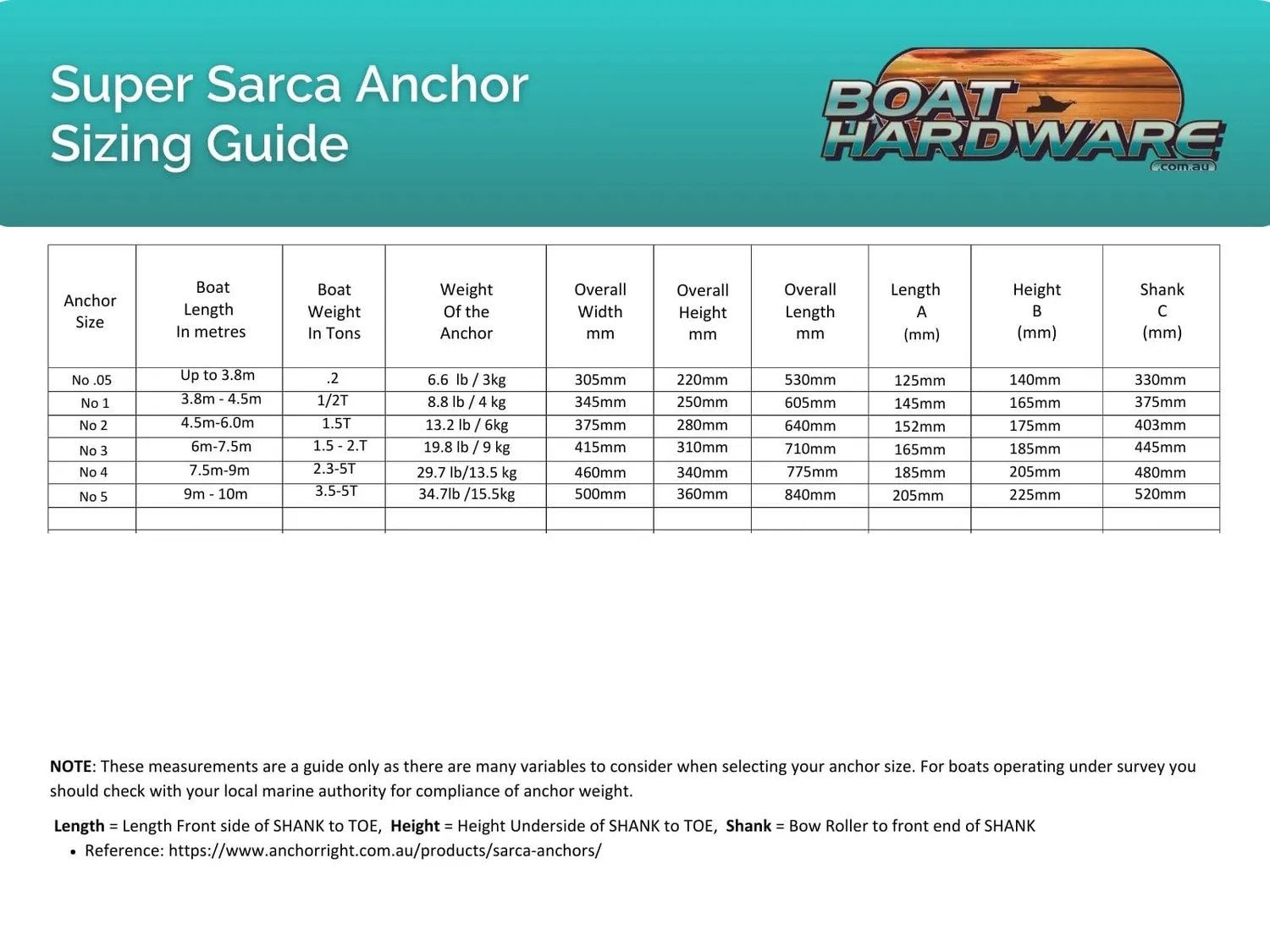

⚠️ Please Note: This chart is a general guide only. Always consider vessel-specific variables such as boat shape, displacement, and anchoring conditions when selecting gear.

3-Way Stainless Swivel:

✅ Prevents Chain Twist – No more tangled anchor chains or ropes

✅ Swivels & Pivots – Maintains optimal anchor orientation at all times

✅ Polished 316 Stainless Steel – Marine-grade finish and long-lasting strength

✅ Specs:

• Length: 135mm

• Diameter: 28mm

• Chain Size Compatibility: 6–8mm

• Pin Diameters: 9mm & 7mm

• Fork Gaps: 16mm & 9mm

• Weight Rating: 850kg / 1900lb

How to Release the Super SARCA 2 Anchor

For Mud or Sand:

✅ Motor your boat directly above the anchor position.

✅ Apply light and steady upward pressure on the anchor line.

✅ The SARCA's special slots break suction with the seabed.

✅ The long shank design helps the anchor lift easily and cleanly.

For Rock or Reef:

✅ Motor directly above the anchor and pull in all slack rope.

✅ Release approximately ½ metre of rope and tie it off.

✅ Slowly motor forward over the anchor.

✅ This lifts the rear of the anchor, engaging the trip release.

✅ As the anchor releases, the stainless steel D-shackle slides to the front of the shank, resetting the anchor automatically for the next drop.
